ACCESSORIES for E-BIKESKETTLER E-Transhill CX12
€3,699.00*
In stock ✓, OPERATING HOLIDAYS until 12.09.25 - dispatch 15.09. 2-3 days
- Product specials:
- > 10 years of proven BOSCH eBike System 2 drive
- Uncomplicated handling without networking
- Quality & support "Made in Germany"
- Aluminium frame of the highest quality
Product information "KETTLER E-Transhill CX12"

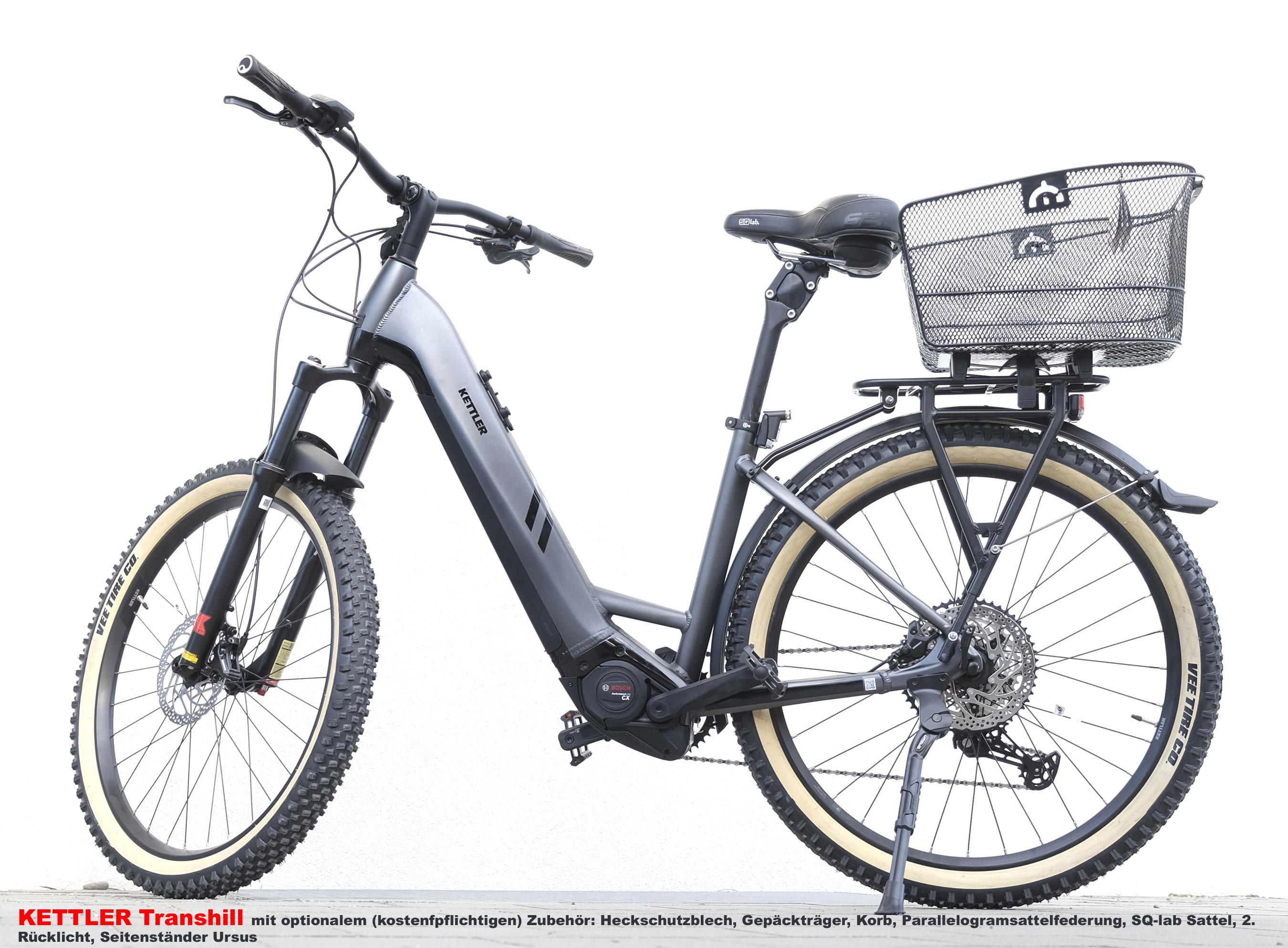

KETTLER Transhill CX12 - practical, comfortable, powerful, stylish and universal!
The fourth-generation BOSCH Performance Line CX motor provides a powerful boost
Long range thanks to integrated 625 Wh battery
Versatile thanks to MonkeyLink interface (mudguards and lights from Monkey Link can be easily "plugged in" via Magnetlink. On sunny days without mudguards and on grey days with (-:
We have managed to develop an e-mountainbike that does not lack the necessary stiffness despite the lack of a "top tube". With the powerful Performance Line CX Gen4 motor and a 625 Wh BOSCH PowerTube battery integrated in the down tube, the e-mountainbike has enough power to comfortably master even longer climbs. The new 12-speed Deore gears in combination with an SLX cassette from SHIMANO are particularly impressive. Hydraulic disc brakes from SHIMANO and VEE Rubber tyres ensure safe braking behaviour on different surfaces and in different weather conditions.
Hardtail e-mountainbike also available on request as a men's bike version with crossbar, although no longer necessary as it is just as stable without a top tube!
Specifications: KB160-N
Item no.: KB160-NBKW48_KETTLALU
MOTOR Bosch Performance Line CX 25/75Nm
MOTORTYP mid-motor
MOTOR SUPPORT up to 25 km/h
BATTERY PowerTube 625 Horizontal
DISPLAY Bosch Purion
FRAME MATERIAL Aluminium
FORK Suntour XCR-34 Air Boost LOR suspension fork
SPRING TRAVEL (FRONT) 120.0 mm
SHIFTING TYPE 12-speed derailleur
SHIFTING SYSTEM Shimano Deore RD-M6100
SHIFT LEVER Shimano Deore SL-M6100
CRANKSET FSA CK220
WHEEL SIZE 27.5 inch
TYRES VEERUBBER CROWN
TYRE SIZE ETRTO 66-584
TYRE SIZE INCH 27.5x2.6
SEAT POST Patent seat post
BRAKETYPE Hydraulic disc brake
BRAKE Shimano R-MT420/4 piston
REAR BRAKE Shimano BR-MT410/2 pistons
TOTAL ALLOWABLE WEIGHT 130.0 kg
FRAME SIZE 48 cm
| --- SUBCATEGORIES ---: | E-BIKE |
|---|---|
| - Brake variant: | Front & rear brake, Hydraulic |
| - Control system: | PEDALS with sensor |
| - Drive variant: | Mid-engine |
| - Flashing light: | Optional |
| - Gradability: | Extreme gradients (>20%) |
| - Operating voltage range: | 36 - 43 Volt |
| - Payload (kg) up to: | 120 |
| - Quick change or additional battery: | Quick change |
| - Reach: | Extremely large range EXTREMELY LARGE > 100 KM |
| - Service / Support / Spare parts supply: | Very good *** |
| - Suitable for air travel: | no |
| - Suspension: | Full suspension |
| - Tire type: | Pneumatic tires with inner tube (TT) |
| - Vehicle category: | 25 km/h pedelec |
| - Wheel size: | 27,5" |
