PENDIX eDrive

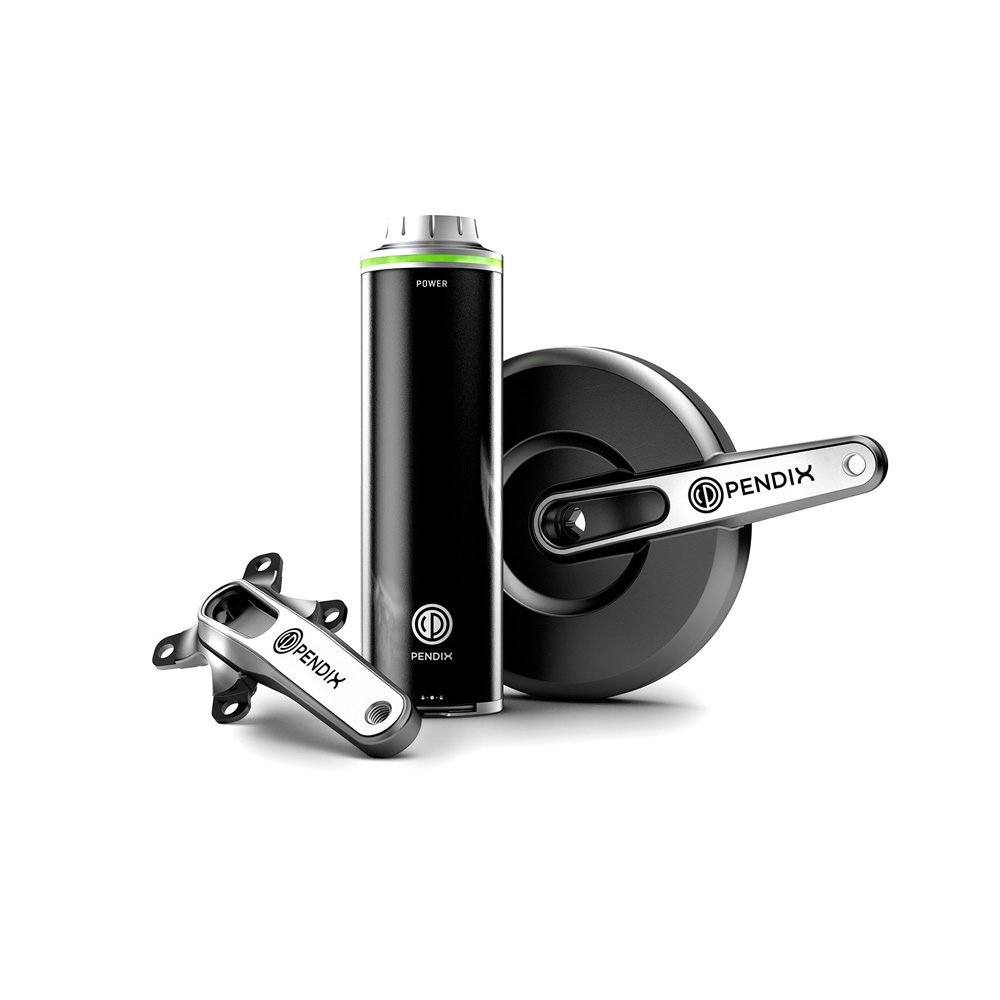

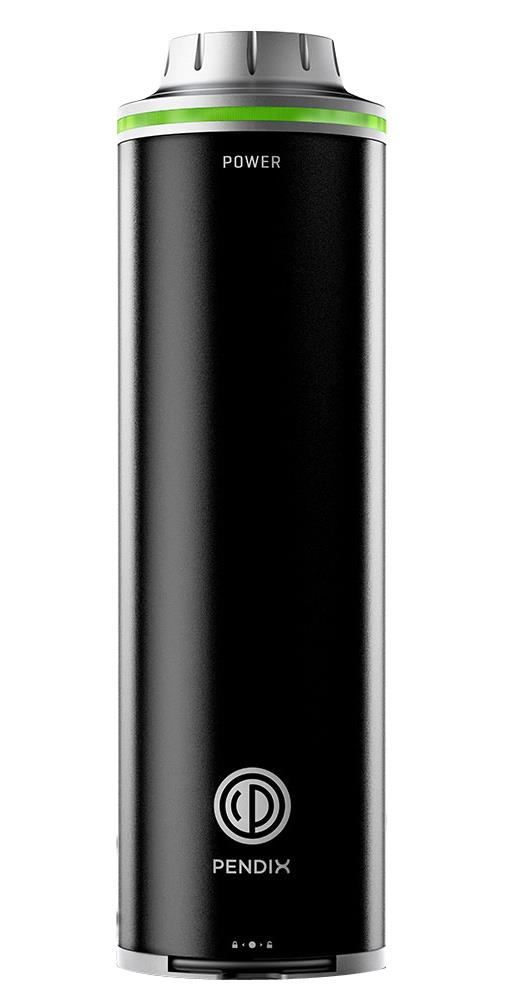

For those who want more. eDrive = your e-drive!With the Pendix eDrive300 or eDrive500, you can enjoy electrically assisted rides of up to 120 km (500 Wh battery). On your way to the office, in the city or on tours in the countryside, the 250 watt motor supports you absolutely silently.Thanks to the Pendix eDrive conversion kit, your bike becomes a reliable and powerful eBike. The system fits almost any type of frame, whether city, trekking, cargo or mountain bikes, there just needs to be enough space for the battery and motor on the frame. It can be fitted regardless of the wheel size, gearing or brake system. The system supports both belt and chain drives. This must be located on the right-hand side of the bike. It is also necessary for your bike to have a BSA bottom bracket. The complete system weighs approx. 7 kg.The gearless mid-motor is mounted instead of the left crank. Thanks to its design and position on the bike, it provides a particularly natural riding experience and is completely silent. 250 watts of power and a maximum torque of 65 Nm, it supports your pedal power up to a speed of 25 km/h (legally permitted maximum value for EU countries). Higher speeds can be achieved by using pure muscle power. As the motor has no gearbox, there is no noticeable pedal resistance when the battery is switched off, so you can still use your bike as before.During the ride, the battery shows you the current charge level via the color-changing LED ring. The support levels can be selected using the rotary wheel above the battery. This smart design means you don't need an additional display on the handlebars. If you still want to have current data visible on the handlebars, you can use the battery's Bluetooth function to connect it to your smartphone and the Pendix.bike app. The battery has a USB interface for charging external devices such as your cell phone. The Pendix ePower is mounted directly on the bike frame using a metal bracket.Requirements for installation:*under ideal conditions- BSA bottom bracket- Sufficient space for the Pendix components -> Use our mounting template- 4-hole chainrings with the connection dimensions 4 x 104 mm or 4 x 64 mm can be mounted on the bike frame. 4 x 64 mm, can be used on the Pendix cranks- Bike must have at least 2 functioning brakesThese points can also be found in detail on our page "Installation requirements".If you are unsure, please choose installation by a specialist dealer, who will check your bike again before installation.Before installation, check that your bike meets all the necessary requirements and that it is in good condition. If your bike is fitted by one of our certified specialist dealers, they are obliged to check the condition of your bike. Additional costs may be incurred for replacing wearing parts, repairing defective parts or replacing chainrings or center stands, for example, if these are no longer compatible due to the Pendix installation.- The gearless mid-motor is completely noiseless, maintenance-free and offers a natural pedalling feel- Easy to operate, 3 support levels, LED ring to display the current charge status, incl. USB interface for charging external devices, incl. Bluetooth function- Dimensions Pendix ePower500 (battery): 80 mm x 342 mm with 2.9 kg or ePower300 (battery): 80 mm x 276 mm with 2.3 kg- Dimensions Pendix eDrive (motor): 292 mm x 206 mm x 50 mm- Total weight: 6.9 kg*under ideal conditionsScope of delivery: x Pendix eDrive (motor) with pre-assembled clutch ring and motor cable1 x Pendix ePower500 (battery),1 x pedal crank 172,5 mm1 x wheel speed sensor unit consisting of- wheel speed sensor mounting kit- spoke magnetPower station consisting of- charger 160 W1 x bottom bracket unit consisting of- bottom bracket- bottom bracket mounting- 2 x spacer rings- spring washer- 2 x crank bolts- bearing shell right aluminumBattery metal holder incl. 2 x screw for battery holder attachment and 2 x screw for plug coverAssembly instructionsSystem instructions
