KETTLER QUADRIGA DUO CX SPEED 1250 Wh 2023 - Demo bike
MADE IN GERMANY
€4,399.00
% €6,599.00 (33.34% saved)
In stock ✓, test possible in the shop 🗸, delivery time:
- for shipping ⛟ : 3-4 weeks
- upon collection: direct 🗸
- Product specials:
- > 10 years of proven BOSCH eBike System 2 drive
- 🔋🔋 Dual battery system for gigantic range
- Quality & support "Made in Germany"
- DreamTeam: Bosch motor & belt drive & continuously variable Envoilo gears
Pick your accessory
THULE Tour Rack
€109.95
KLICKfix® Rackpack Variante: City
€129.95
KLICKfix® Rackpack Variante: Waterproof
€112.95

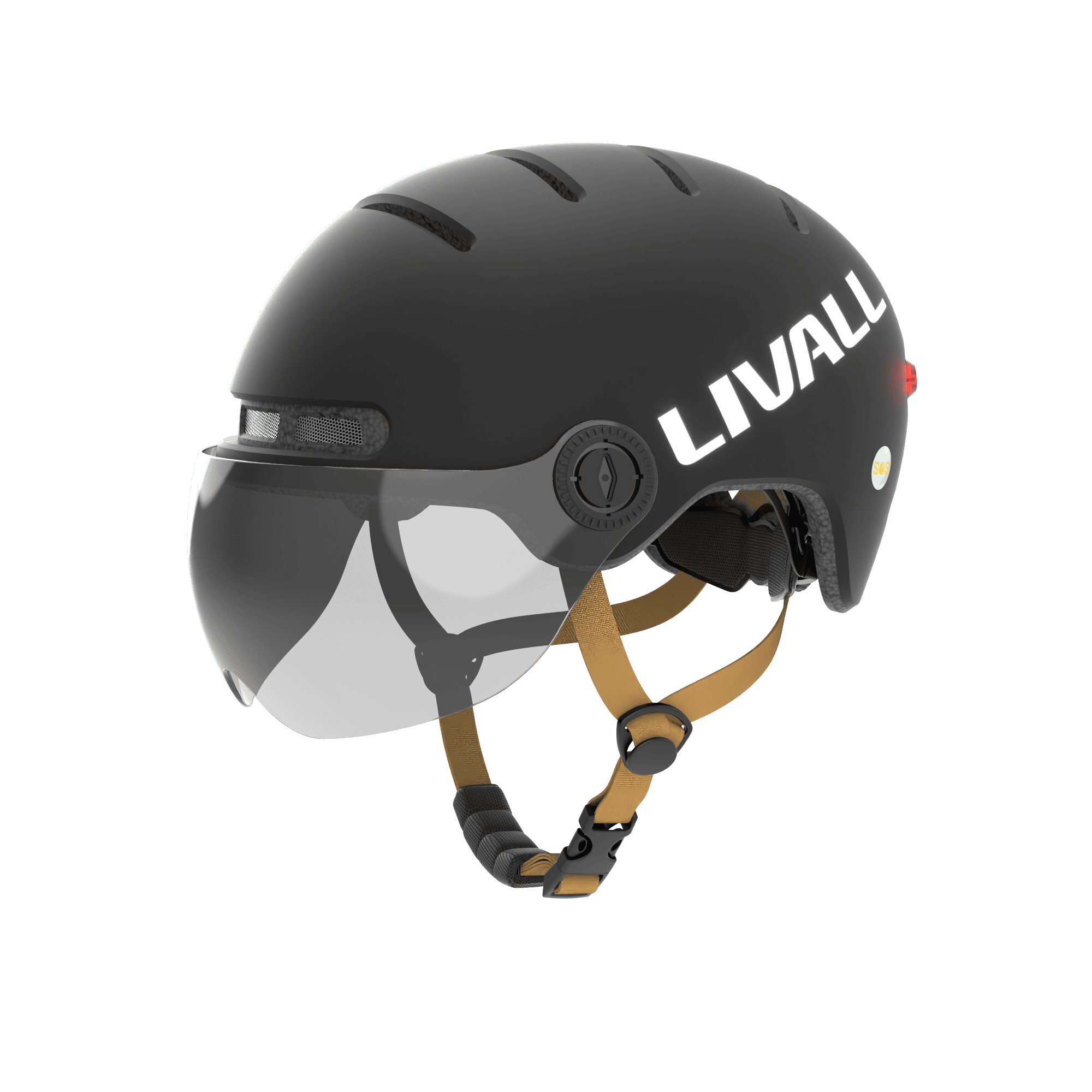

LIVALL L23 approved S-Pedelec helmet (NTA 8776) Colour: Yellow / Head circumference: L 57-61 cm
€89.10
CASCO Activ 2 helmet white
from €89.00
CONTEC Faltschloss SherLock
€49.95
KLICKfix® extra-wide handlebar adapter E by RIXEN & KAUL
€36.95
KLICKfix® basket bag Shopper by Rixen & Kaul foldable Variante: PRO
€44.95
SQlab saddle 621 ERGOLUX® active 2.1
from €119.95
KLICKfix® City Basket 2 with BasketClip 2 ...fits almost everywhere!
€54.95
KLICKfix® City basket CARGO with basket clip 2 ...fits almost everywhere!
€67.95
LIVALL L23 approved S-Pedelec helmet (NTA 8776)
from €89.10
Product number:
14851
EAN:
4251238559587
Product information "KETTLER QUADRIGA DUO CX SPEED 1250 Wh 2023 - Demo bike"
As the motor assistance on S-pedelecs is only switched off at a speed of 45 km/h (40 km/h on the QUADRIGA DUO CX SPEED), the focus is clearly on "technology and safety" when it comes to the equipment.
With the QUADRIGA DUO CX SPEED from the QUADRIGA DUO series, we have an S-pedelec with a mid-motor and sporty, stepless ENVIOLO hub gears in our programme. Equipped with two BOSCH Powertubes with 1250Wh and a powerful BOSCH Performance Line Speed motor, it is ideal for long and speedy tours. The SUNTOUR XCR suspension fork offers great comfort and safety.
The perfect commuter bike with an unbeatable range
Unique frame that sets standards
Bosch Performance Line Speed motor
Stepless ENVIOLO hub gears and low-maintenance GATES® belt drive
The sporty S-Pedelec is equipped with the Bosch Performance Line Speed motor. The motor is controlled via the Kiox colour display with extensive connectivity functions. The wide 29-inch tyres, a 100 mm suspension fork and the suspension seat post, which can be lowered at the touch of a button, offer riding safety and comfort. In terms of power transmission and ease of use, the combination of continuously variable ENVIOLO gears and belt drive is hard to beat. Powerful 4-piston MAGURA disc brakes and a high-quality Supernova lighting system offer a high level of safety.
MOTOR Bosch Performance Line Speed 45/85Nm
MOTORTYP mid-motor
MOTOR SUPPORT up to 45 km/h
BATTERY 2x Bosch PowerTube 625
DISPLAY Bosch KIOX
FRAME MATERIAL Aluminium FRAME SIZE 50 cm
FORK SR SUNTOUR XCR34, Air SPRING TRAVEL (FRONT) 100.0 mm
SHIFTING TYPE Gear hub | stepless SHIFT LEVER ENVIOLO CT -2200
CYCLES FSA CK-320 CYCLES GATES ® CDX 122T black/ black
WHEEL SIZE 29 inch TIRES Supero Intercorsa TIRE SIZE (ETRTO 62-622) TIRE SIZE (INCH 29 x 2.45)
HANDLEBARS Humpert ergotec ERGO PLUS XL Lv6
FRONT BAR Humpert ergotec Swell-XR
SADDLE ZECURE L VL-3567
SADDLE SUPPORT LIMOTEC A3Z suspension dropper post (140x34.9mm)
BRAKE TYPE hydraulic disc brake BRAKE MAGURA MT5e REAR BRAKE MAGURA MT5e / 4-piston
FRONT LIGHT SUPERNOVA M99 Mini Pro -45, 250 lux REAR LIGHT SUPERNOVA M99
Pannier rack IRack 2
PERMISSIBLE TOTAL WEIGHT
145.0 kg - Here demo unit from the shop with ~ 65 kilometres ridden
With the QUADRIGA DUO CX SPEED from the QUADRIGA DUO series, we have an S-pedelec with a mid-motor and sporty, stepless ENVIOLO hub gears in our programme. Equipped with two BOSCH Powertubes with 1250Wh and a powerful BOSCH Performance Line Speed motor, it is ideal for long and speedy tours. The SUNTOUR XCR suspension fork offers great comfort and safety.
The perfect commuter bike with an unbeatable range
Unique frame that sets standards
Bosch Performance Line Speed motor
Stepless ENVIOLO hub gears and low-maintenance GATES® belt drive
The sporty S-Pedelec is equipped with the Bosch Performance Line Speed motor. The motor is controlled via the Kiox colour display with extensive connectivity functions. The wide 29-inch tyres, a 100 mm suspension fork and the suspension seat post, which can be lowered at the touch of a button, offer riding safety and comfort. In terms of power transmission and ease of use, the combination of continuously variable ENVIOLO gears and belt drive is hard to beat. Powerful 4-piston MAGURA disc brakes and a high-quality Supernova lighting system offer a high level of safety.
MOTOR Bosch Performance Line Speed 45/85Nm
MOTORTYP mid-motor
MOTOR SUPPORT up to 45 km/h
BATTERY 2x Bosch PowerTube 625
DISPLAY Bosch KIOX
FRAME MATERIAL Aluminium FRAME SIZE 50 cm
FORK SR SUNTOUR XCR34, Air SPRING TRAVEL (FRONT) 100.0 mm
SHIFTING TYPE Gear hub | stepless SHIFT LEVER ENVIOLO CT -2200
CYCLES FSA CK-320 CYCLES GATES ® CDX 122T black/ black
WHEEL SIZE 29 inch TIRES Supero Intercorsa TIRE SIZE (ETRTO 62-622) TIRE SIZE (INCH 29 x 2.45)
HANDLEBARS Humpert ergotec ERGO PLUS XL Lv6
FRONT BAR Humpert ergotec Swell-XR
SADDLE ZECURE L VL-3567
SADDLE SUPPORT LIMOTEC A3Z suspension dropper post (140x34.9mm)
BRAKE TYPE hydraulic disc brake BRAKE MAGURA MT5e REAR BRAKE MAGURA MT5e / 4-piston
FRONT LIGHT SUPERNOVA M99 Mini Pro -45, 250 lux REAR LIGHT SUPERNOVA M99
Pannier rack IRack 2
PERMISSIBLE TOTAL WEIGHT
145.0 kg - Here demo unit from the shop with ~ 65 kilometres ridden
| • Brake variation: | Front & rear brake, Hydraulic |
|---|---|
| • Control: | PEDALS with sensor |
| • Folding function: | Nicht faltbar |
| • Gradabilidad (%): | Extreme inclines (>20%) |
| • Load (Kg) up to: | 115 |
| • Operating range: | 36 - 43 Volt |
| • Quick changeable battery: | Quick change possible |
| • Range (km): | 350 |
| • Suitable for air travel: | no |
| • Suspension: | Frame front suspension |
| • Tire type: | Pneumatic tyres with tube (TT) |
| • Turn signals: | No |
| • Vehicle category: | 45 km/h Light motorbike |
| • Wheel size: | 29" |
| ••• SUB CATEGORIES •••: | E-BIKE |
| Manufacturer 🏭 "KETTLER"
KETTLER Alu-Rad GmbH
Longericher Straße 2
D-50739 Köln
E-Mail: info@kettler-alu-rad.de
Question : Welche Rahmengröße ist verfügbar? Ich bin ca. 175 cm groß.
From : customer
Answer:
Hallo, beim KETTLER QUADRIGA DUO CX SPEED gibt es aktuell ein schwarzes 50er in der Austellung; sollte lt. Rahmengrößenberatung für 1,75 Meter Körpergröße auch passen - siehe KETTLER Rahmengrößenberatung LINK:
MfG efahrrad.de escooter.de
