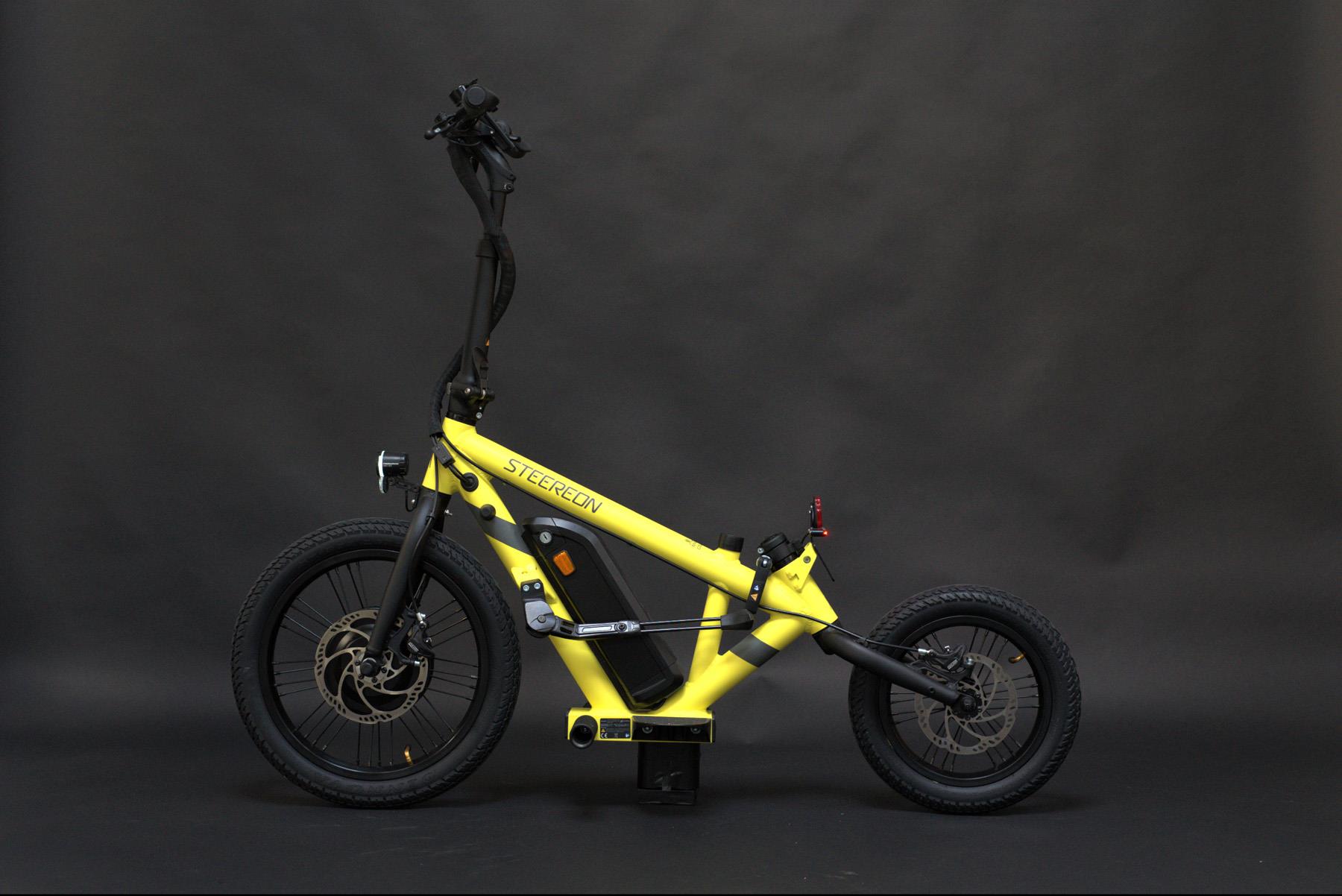

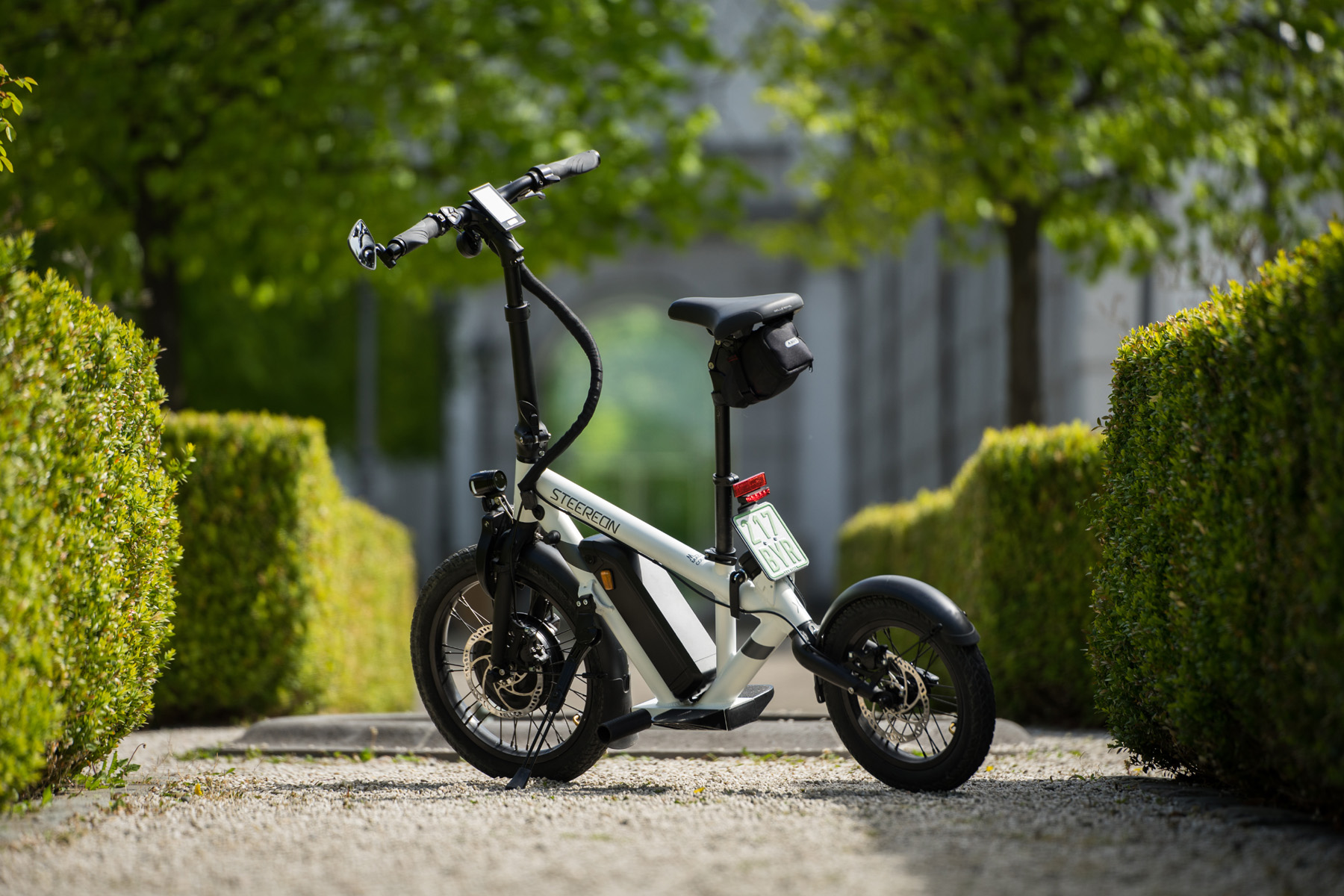

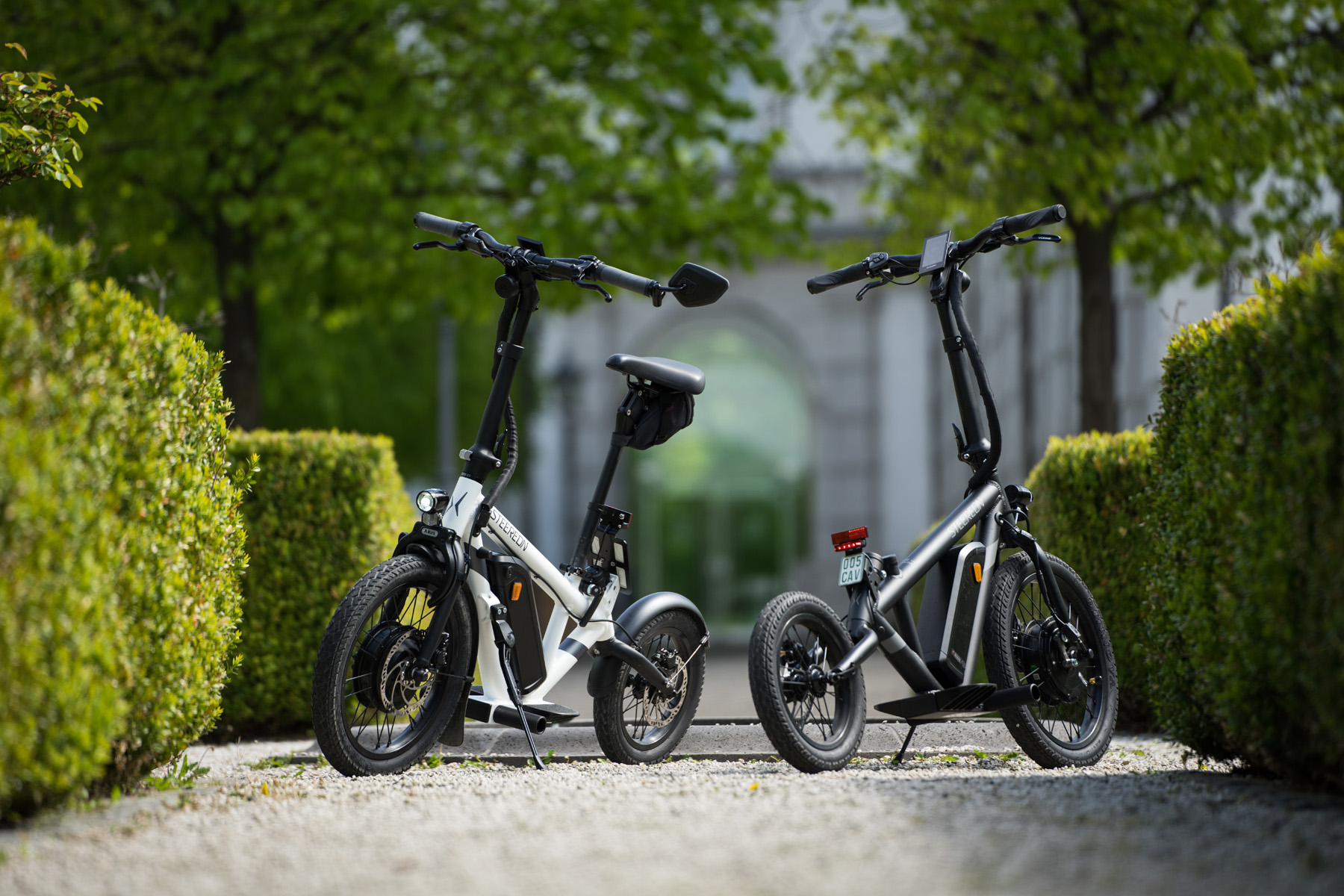

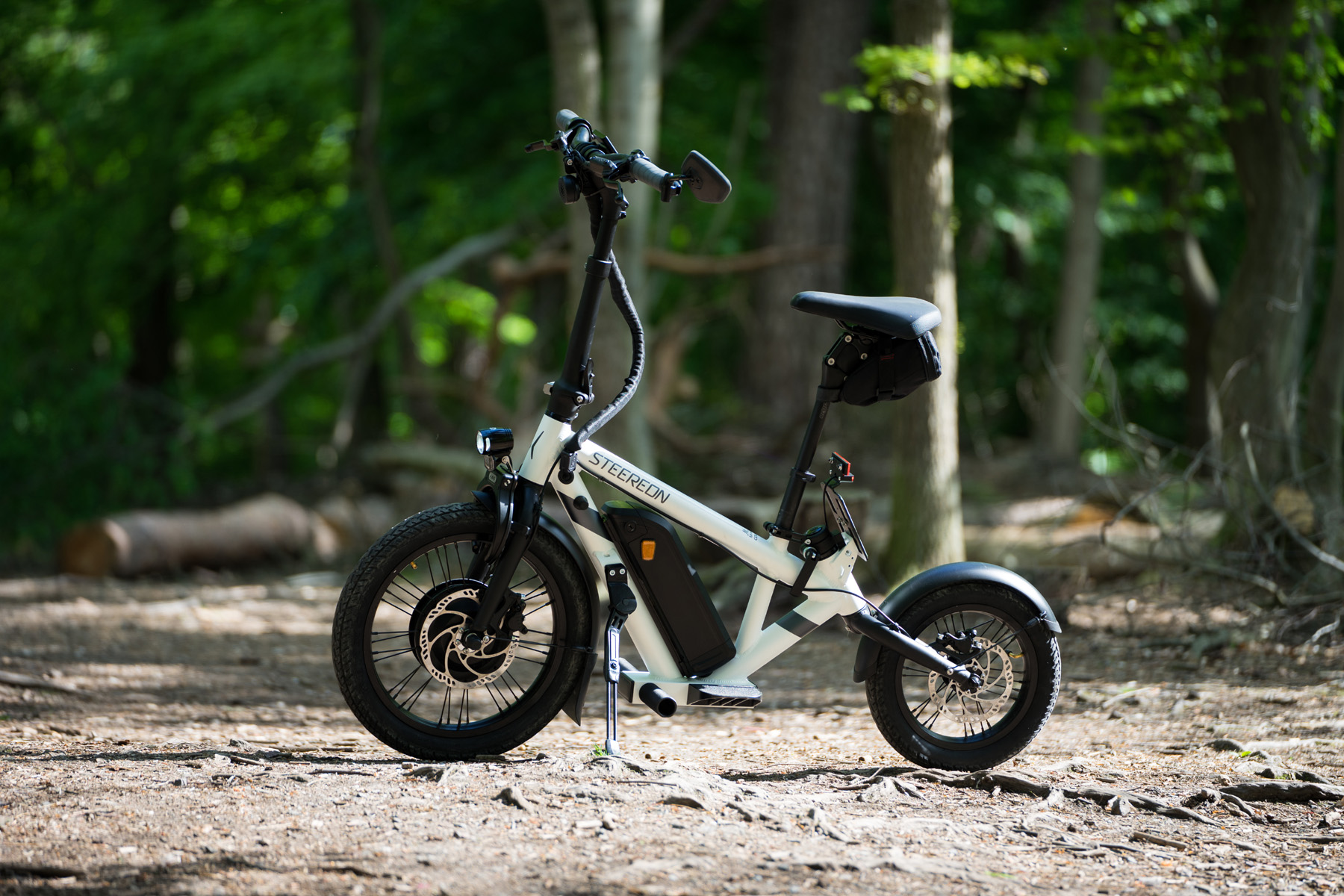

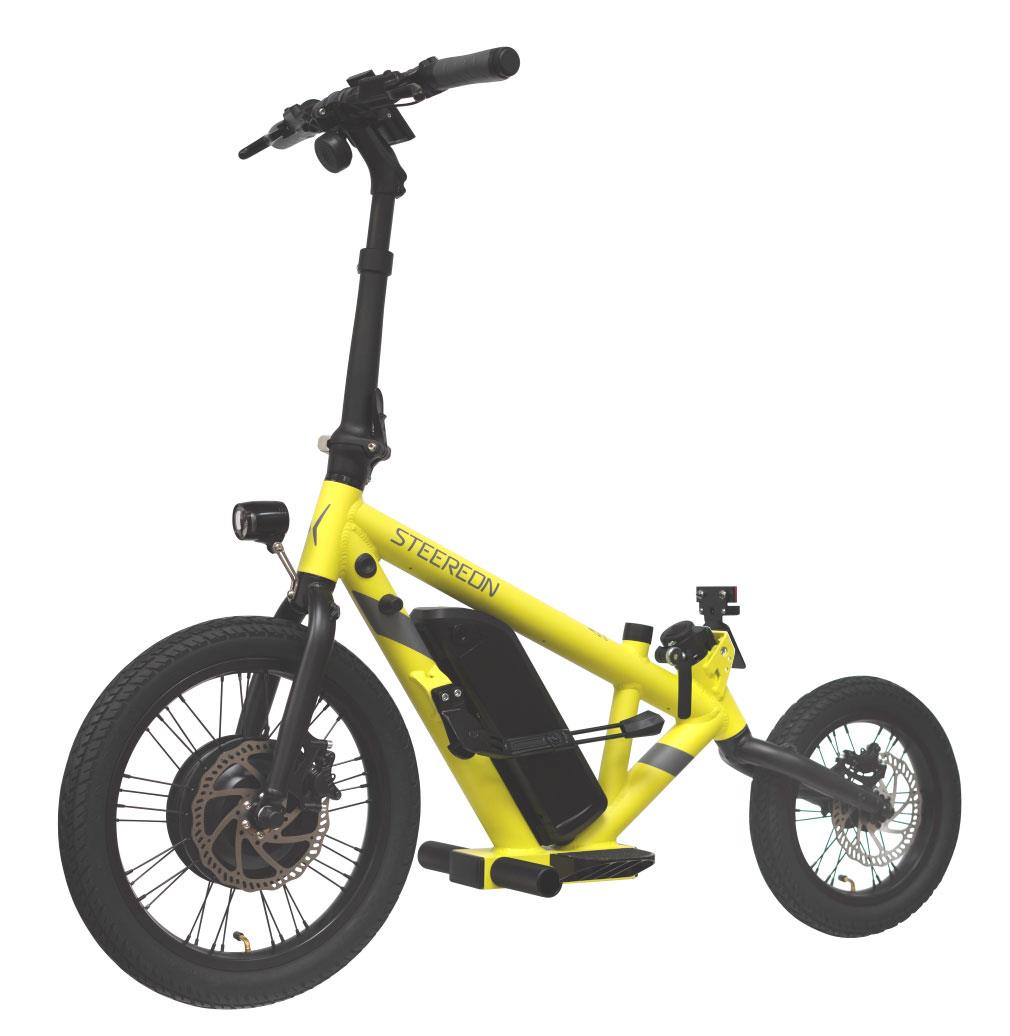

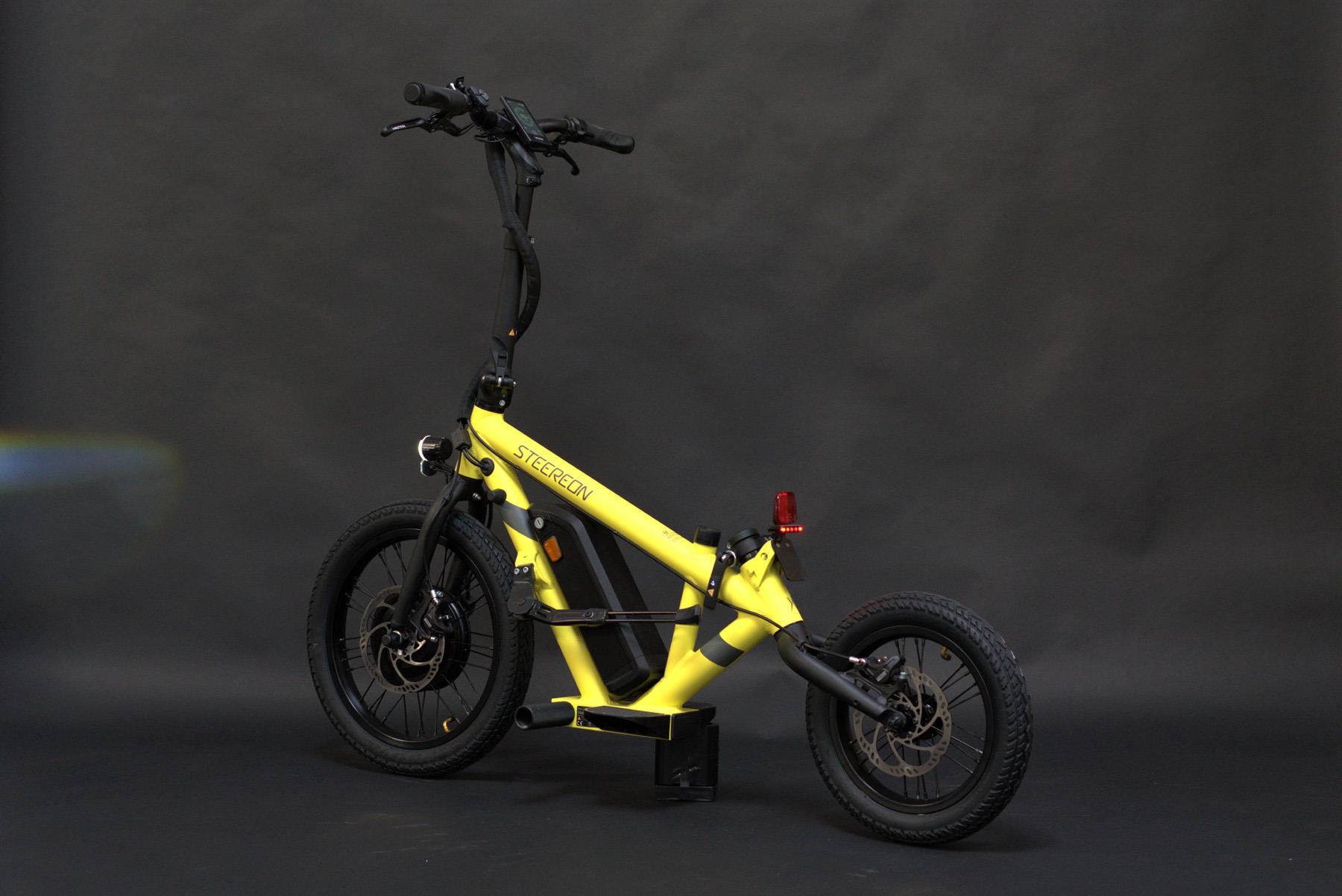

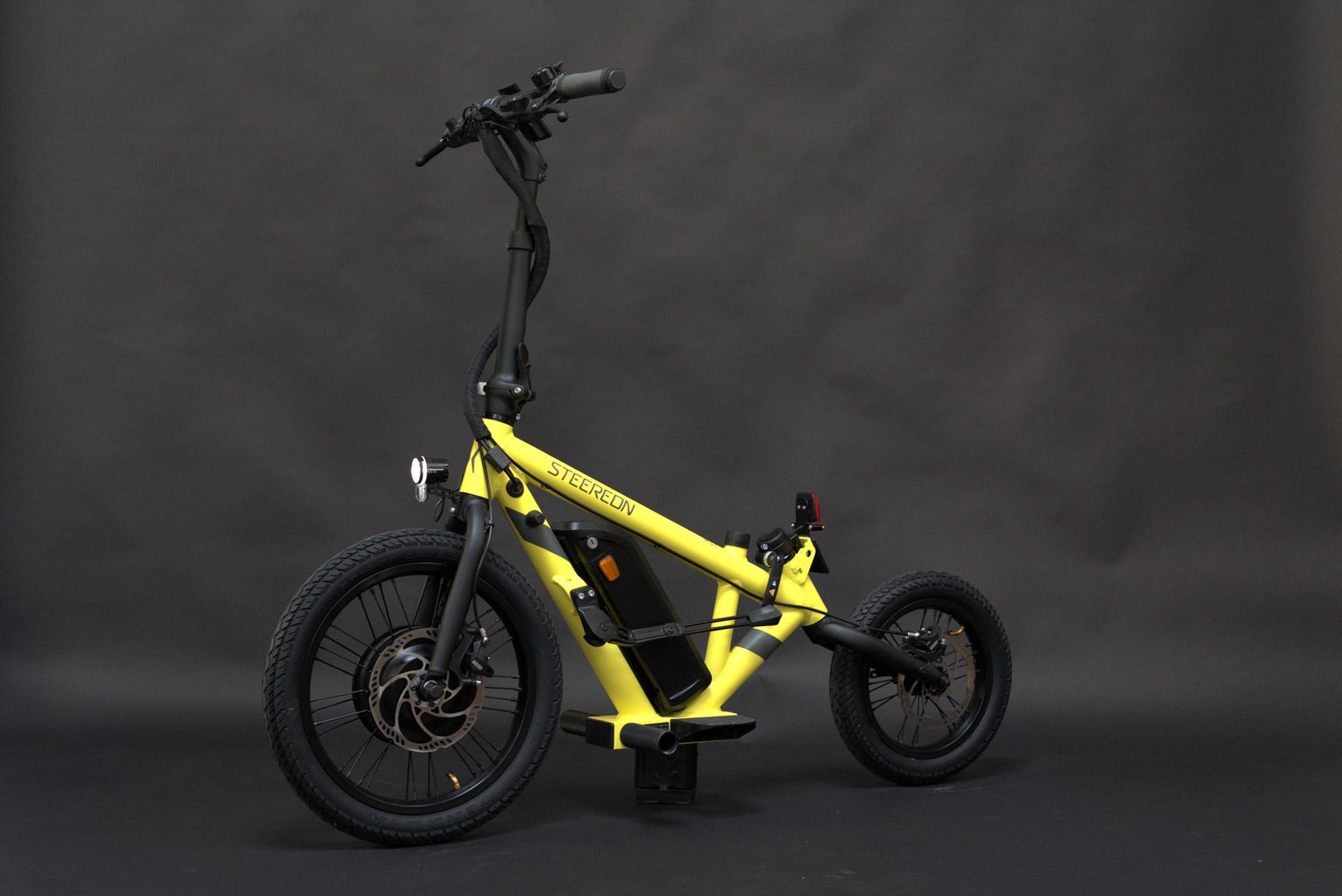

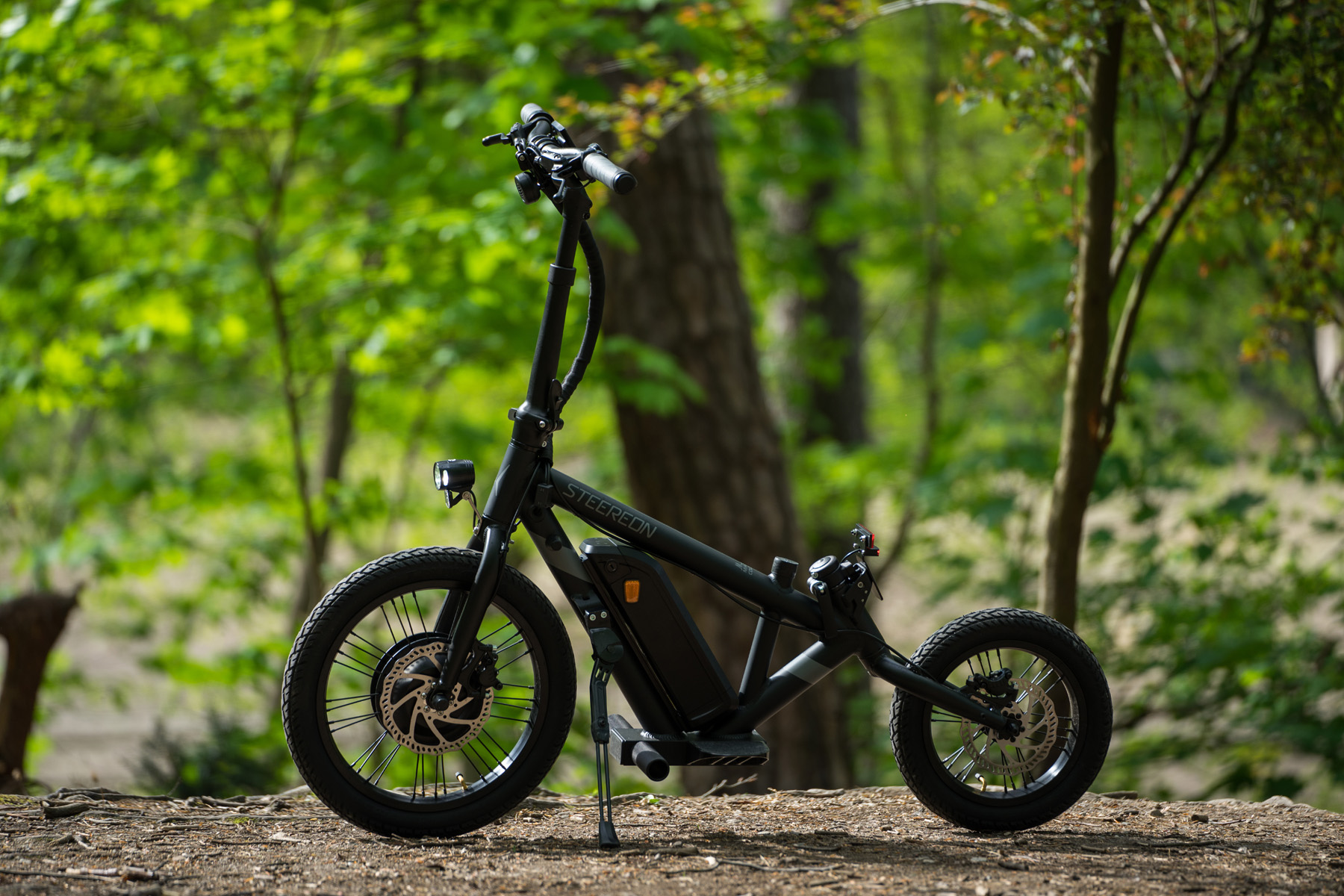

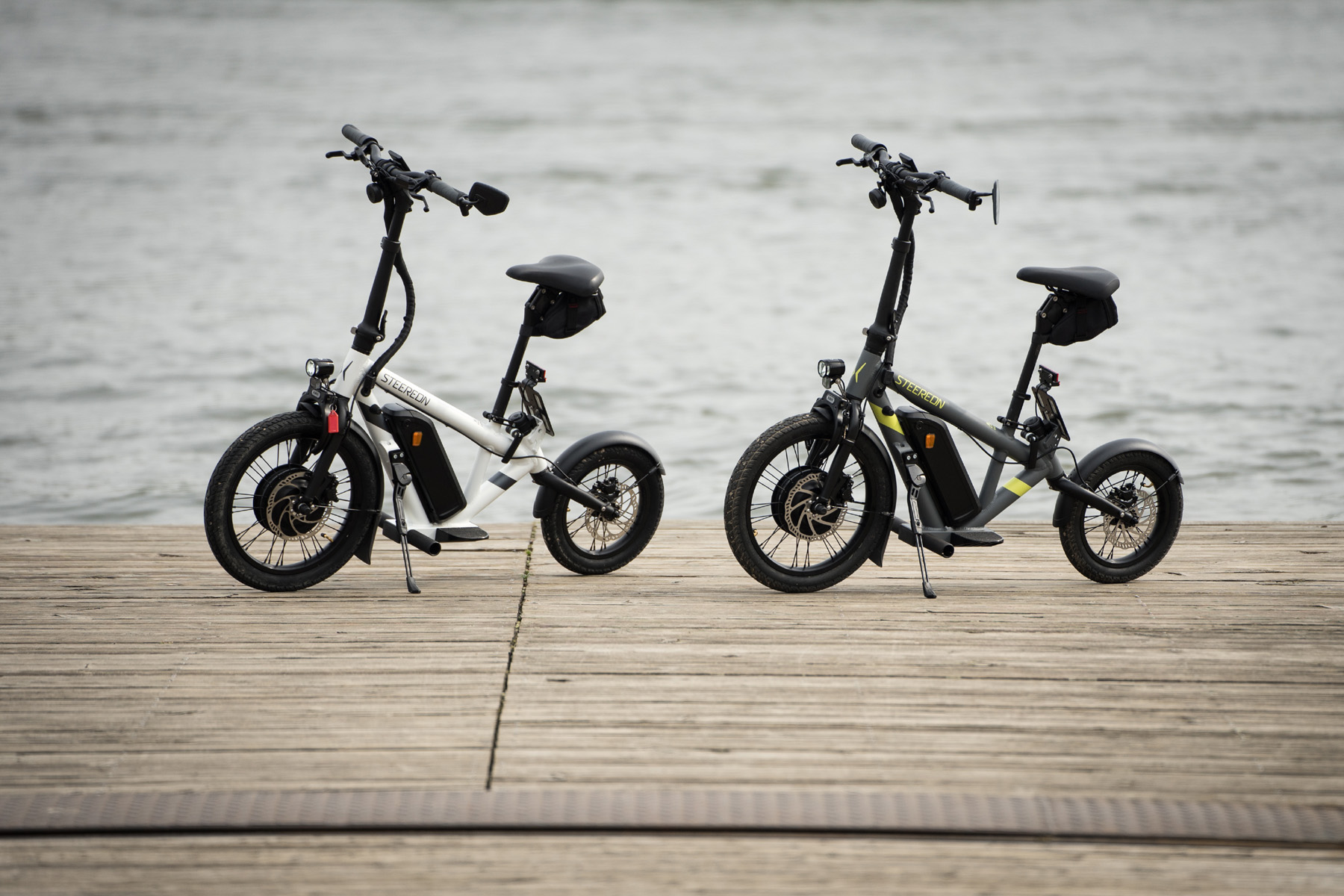

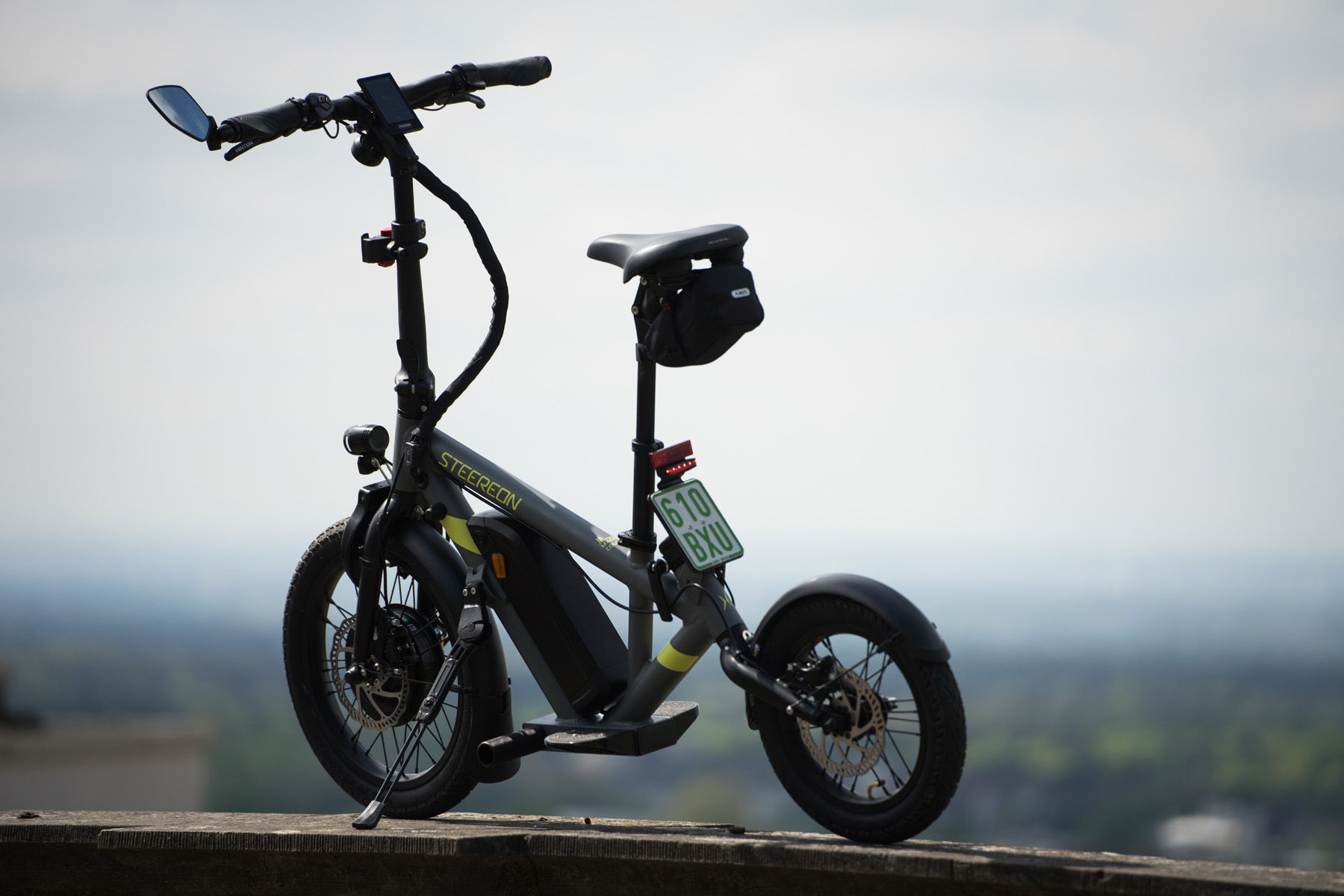

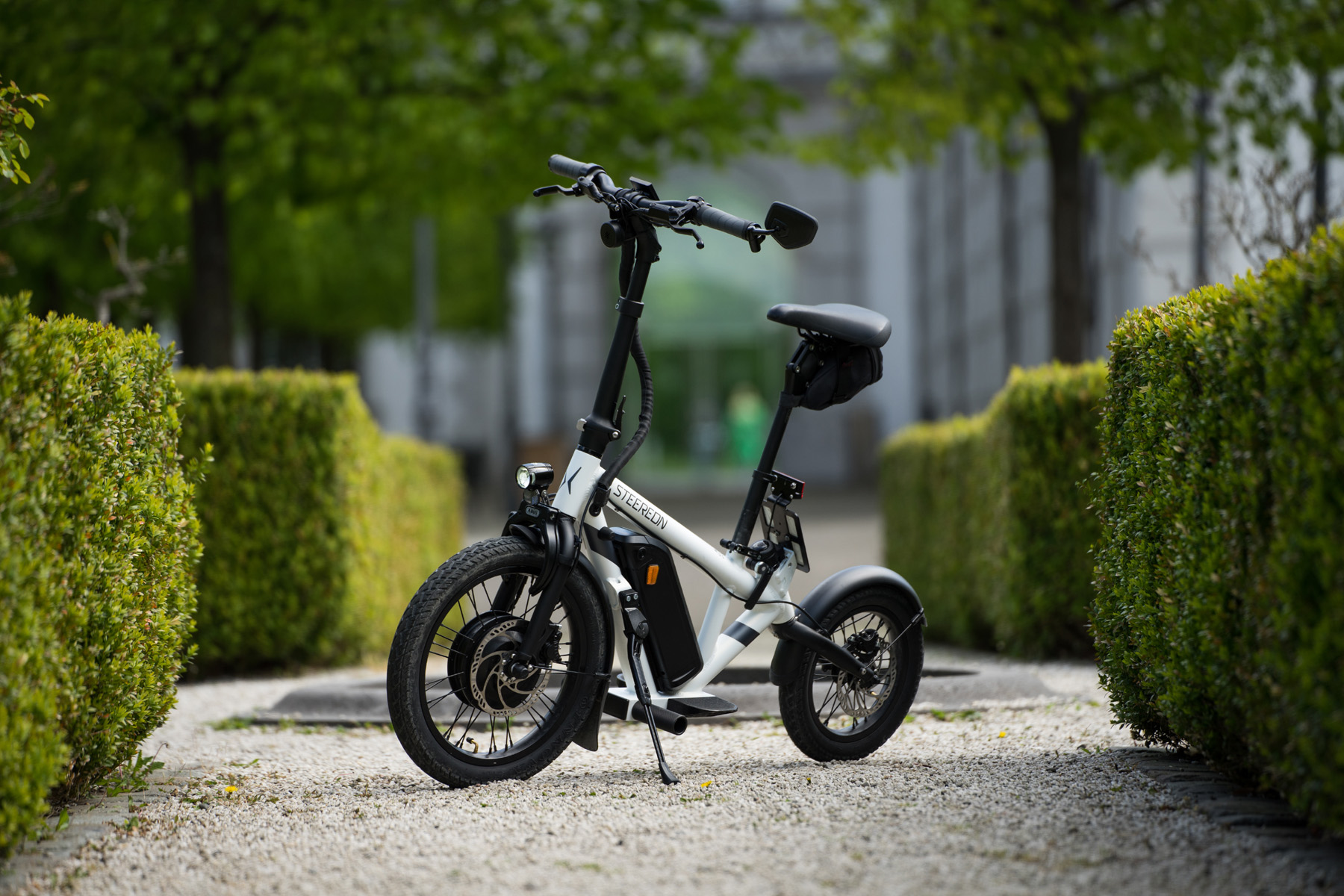

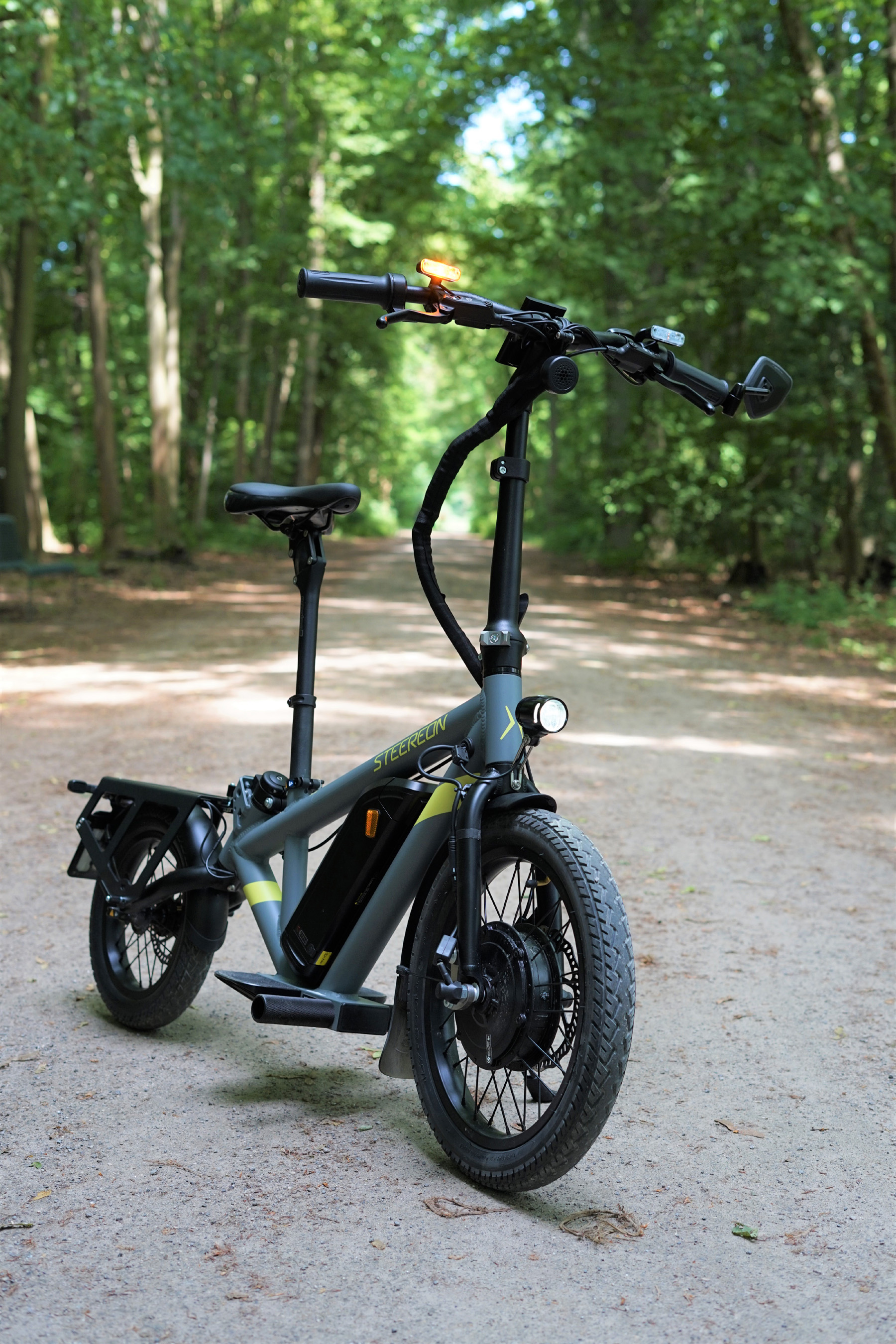

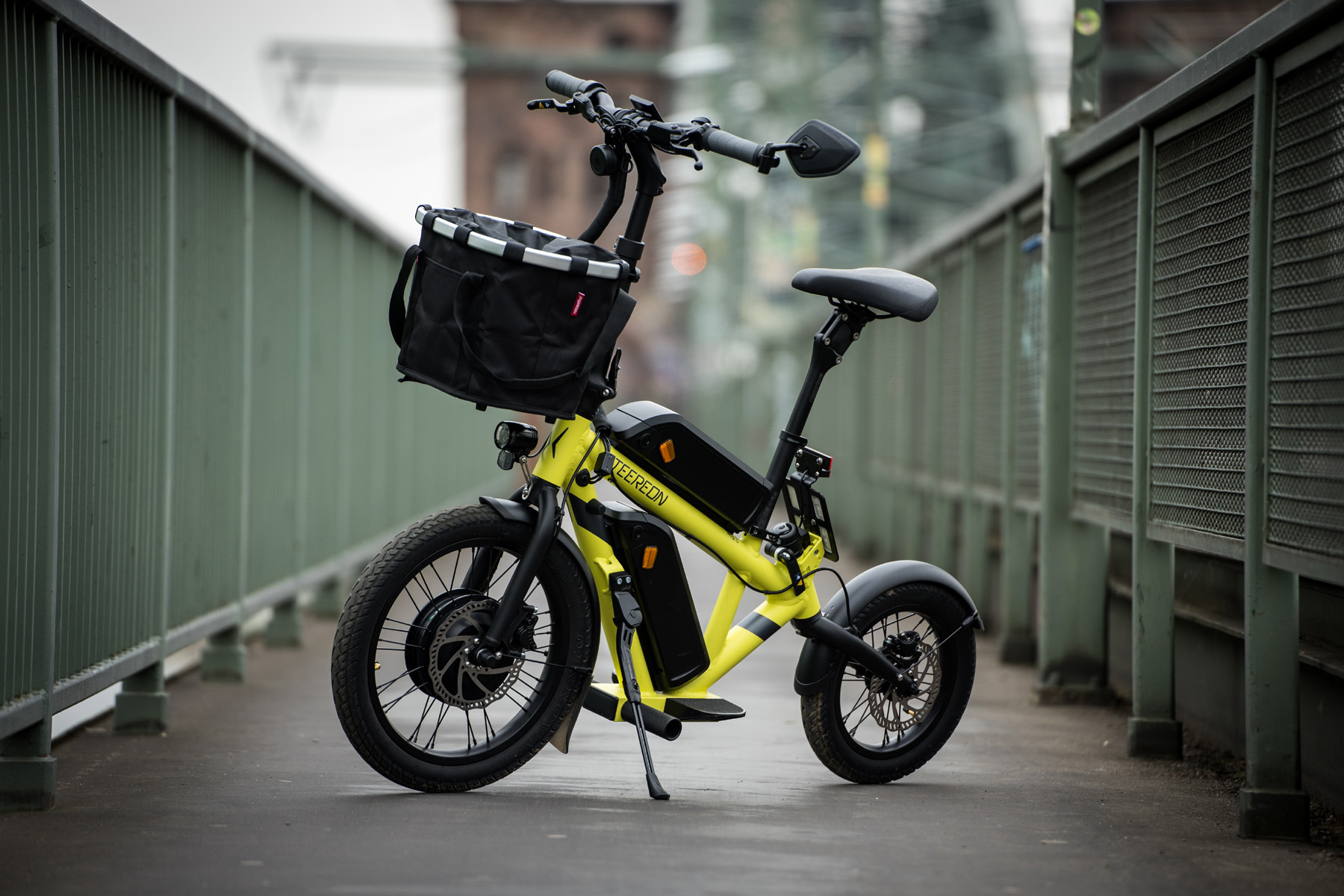

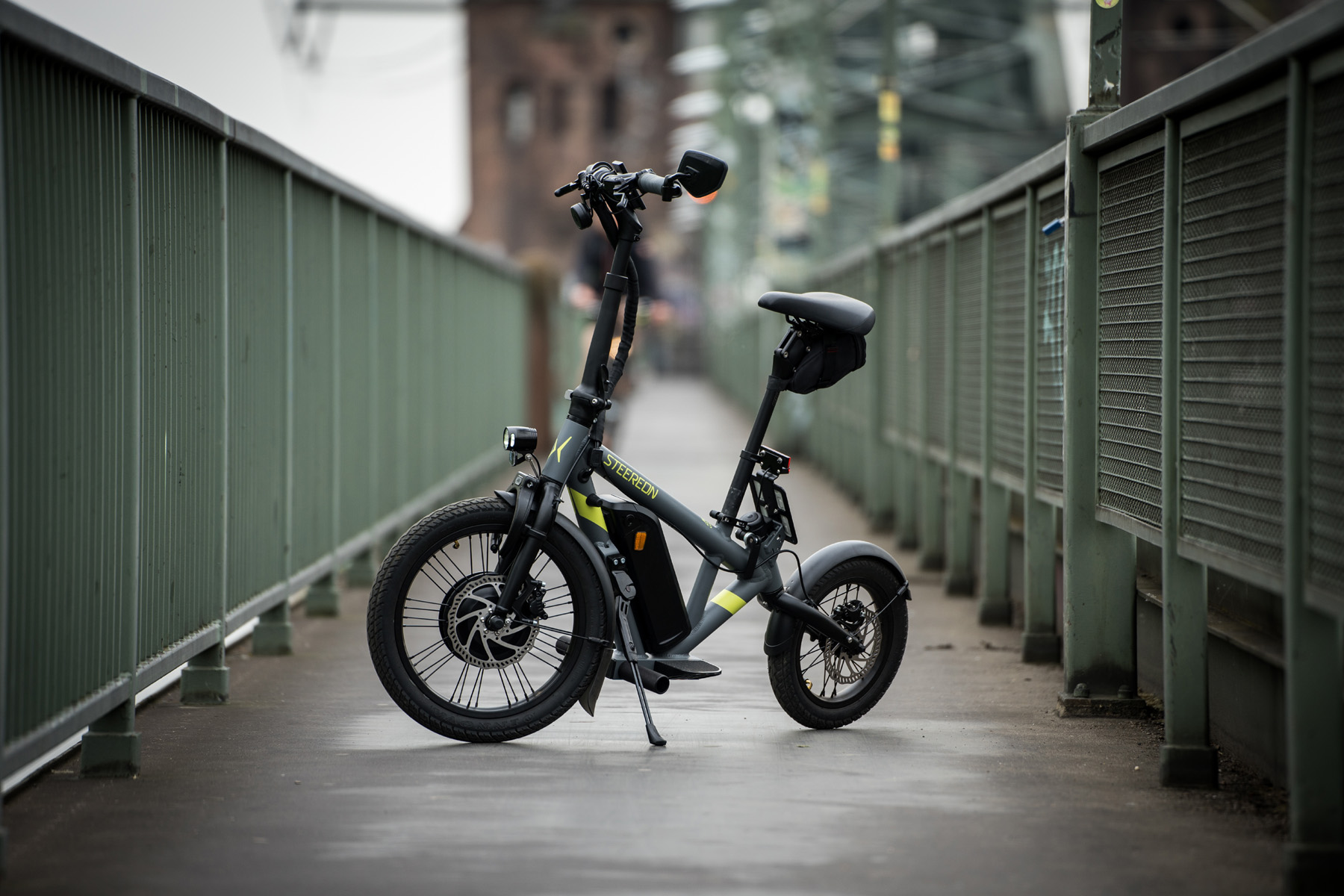

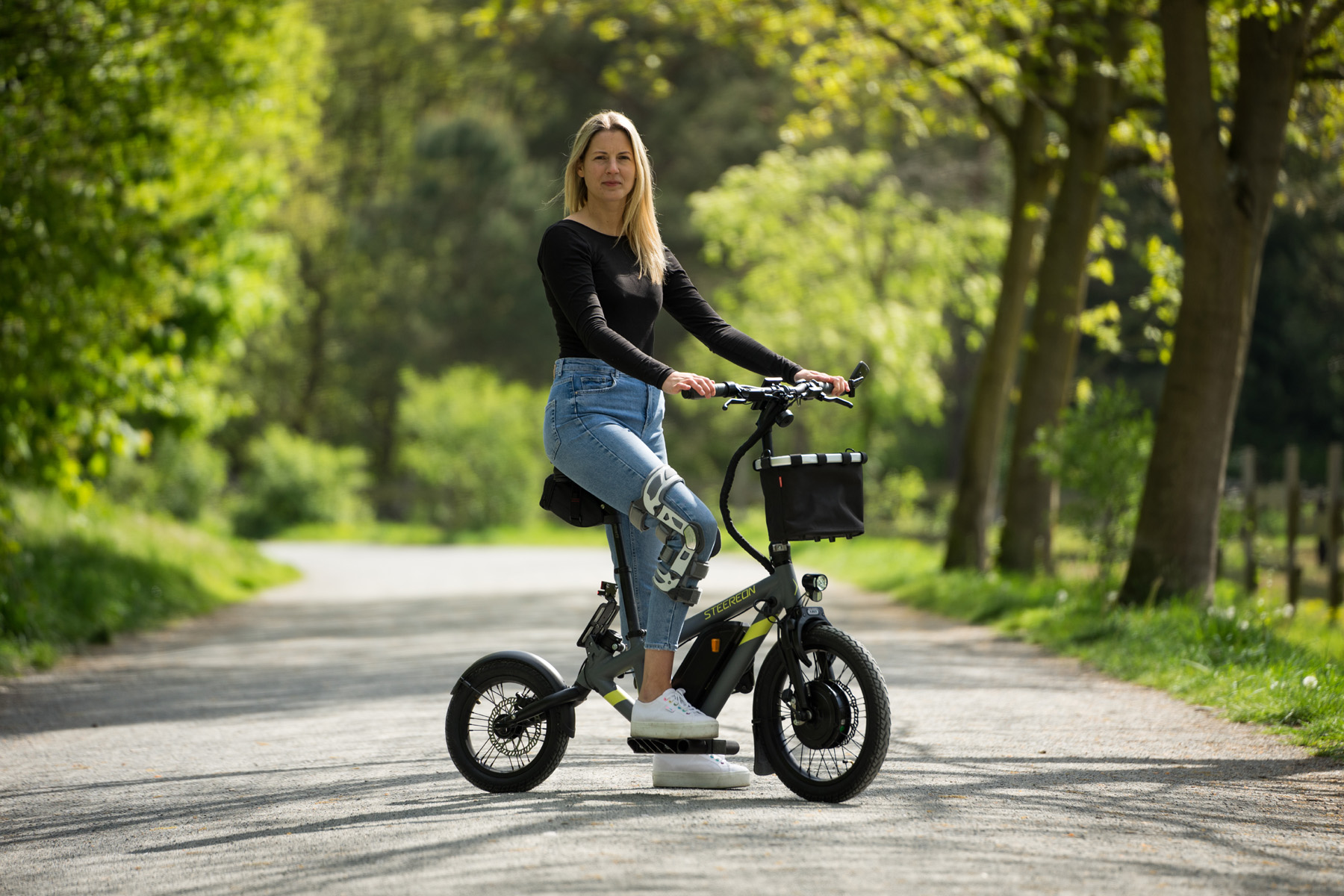

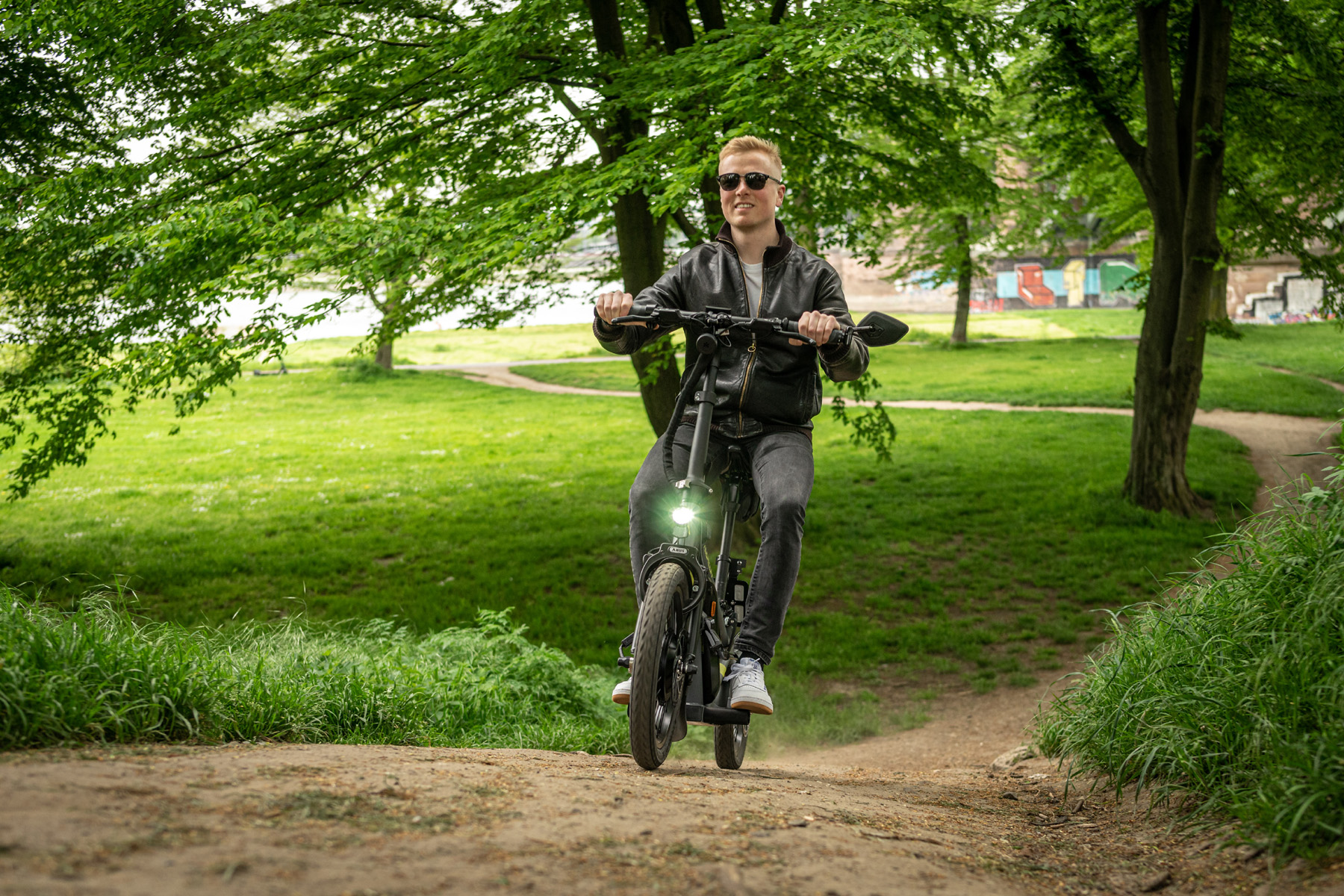

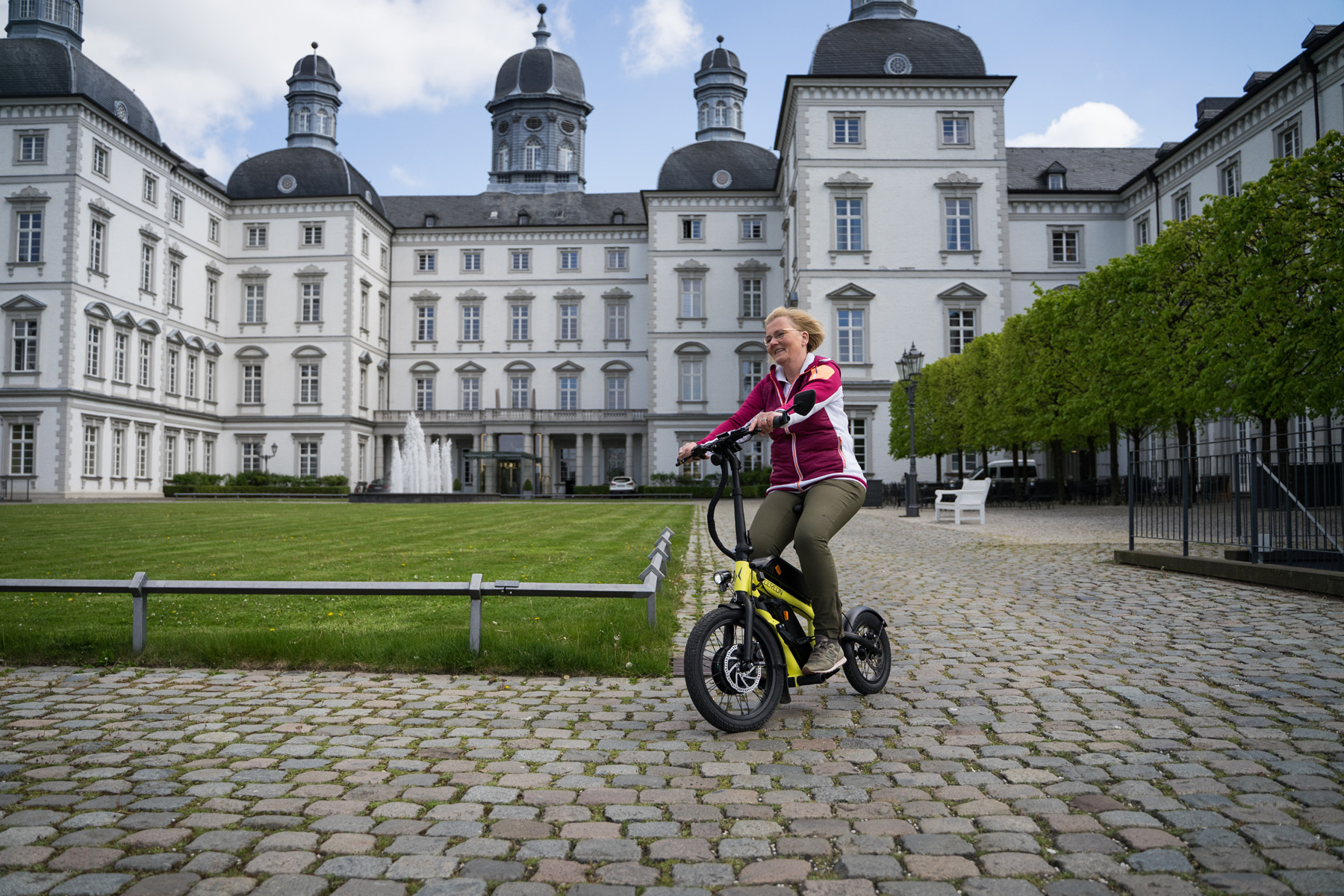

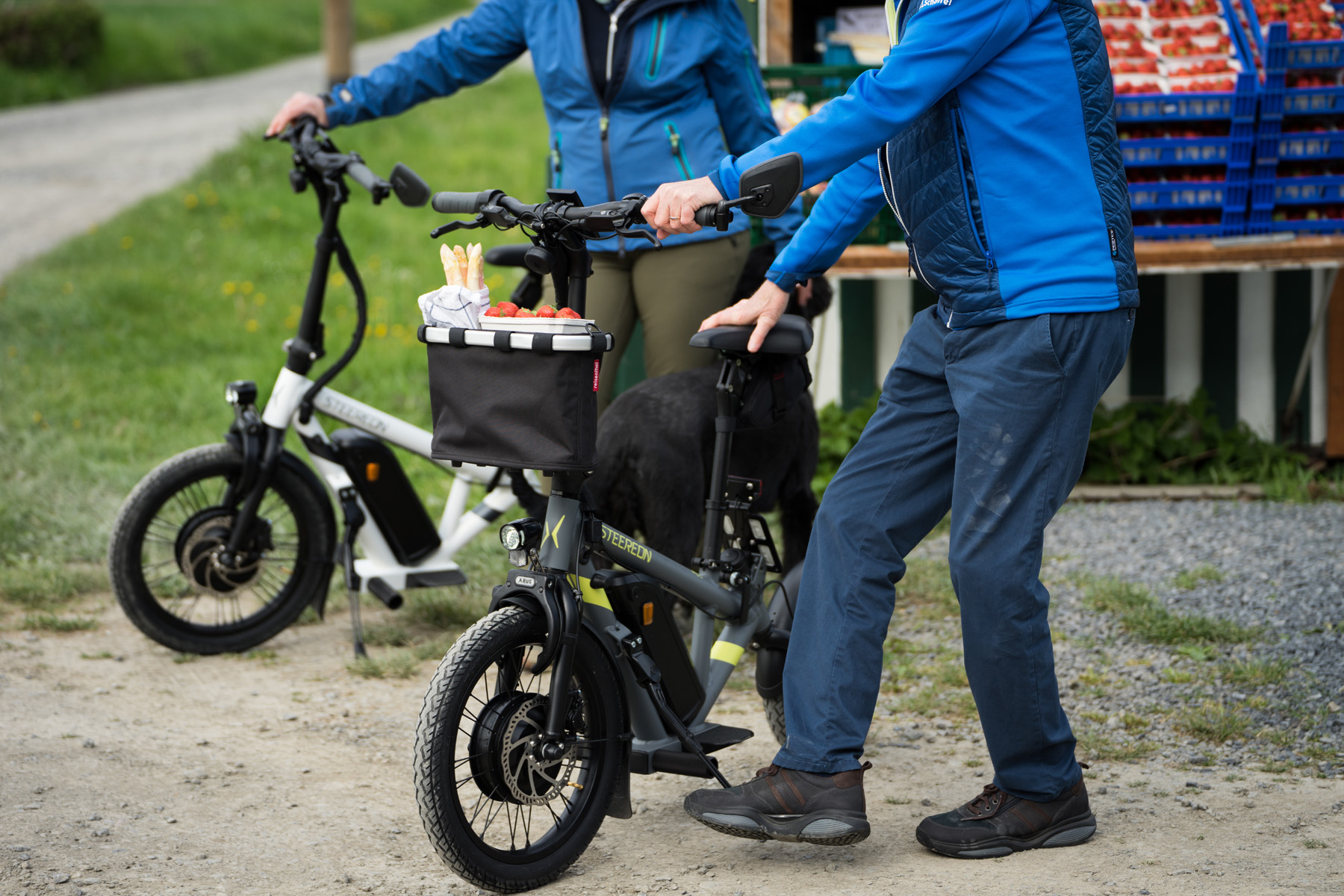

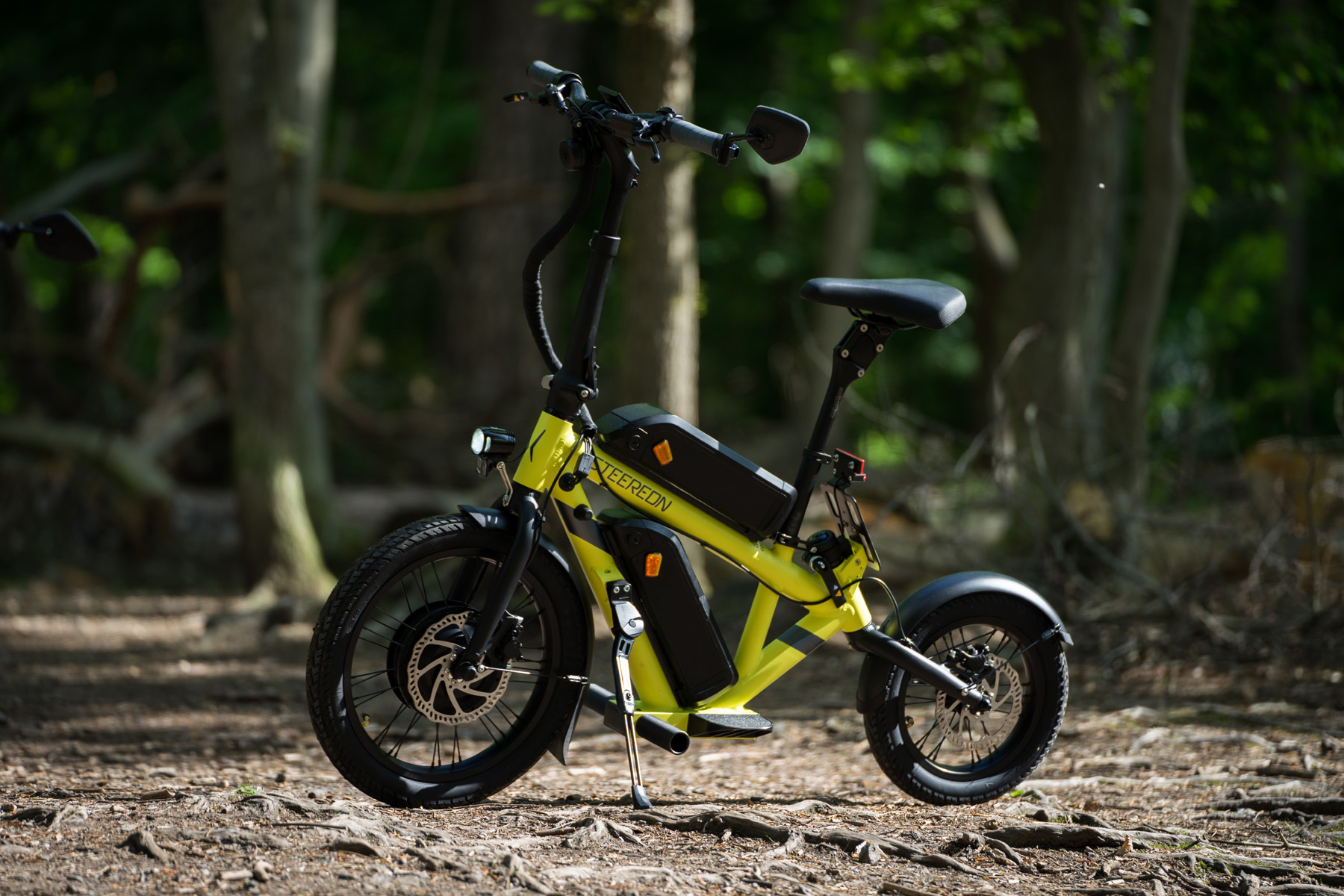

STEEREON C20 (without seat)

Product information "STEEREON C20 (without seat)"

Nominal continuous output: 500 watts
Peak power: approx. 900 watts
Maximum torque: 65 Nm
Climbing ability: ~20 %
48 volt motor with planetary gearbox (Bafang)

Range with 1st battery: max. 40 or 50 km
Range with 2nd battery (chargeable range extender option): Depending on combination max. 80 - 100 km
Lithium-ion battery with 556 Wh or 655 Wh (max. 1,310 Wh with optional range extender)
Nominal battery voltage: 48 V

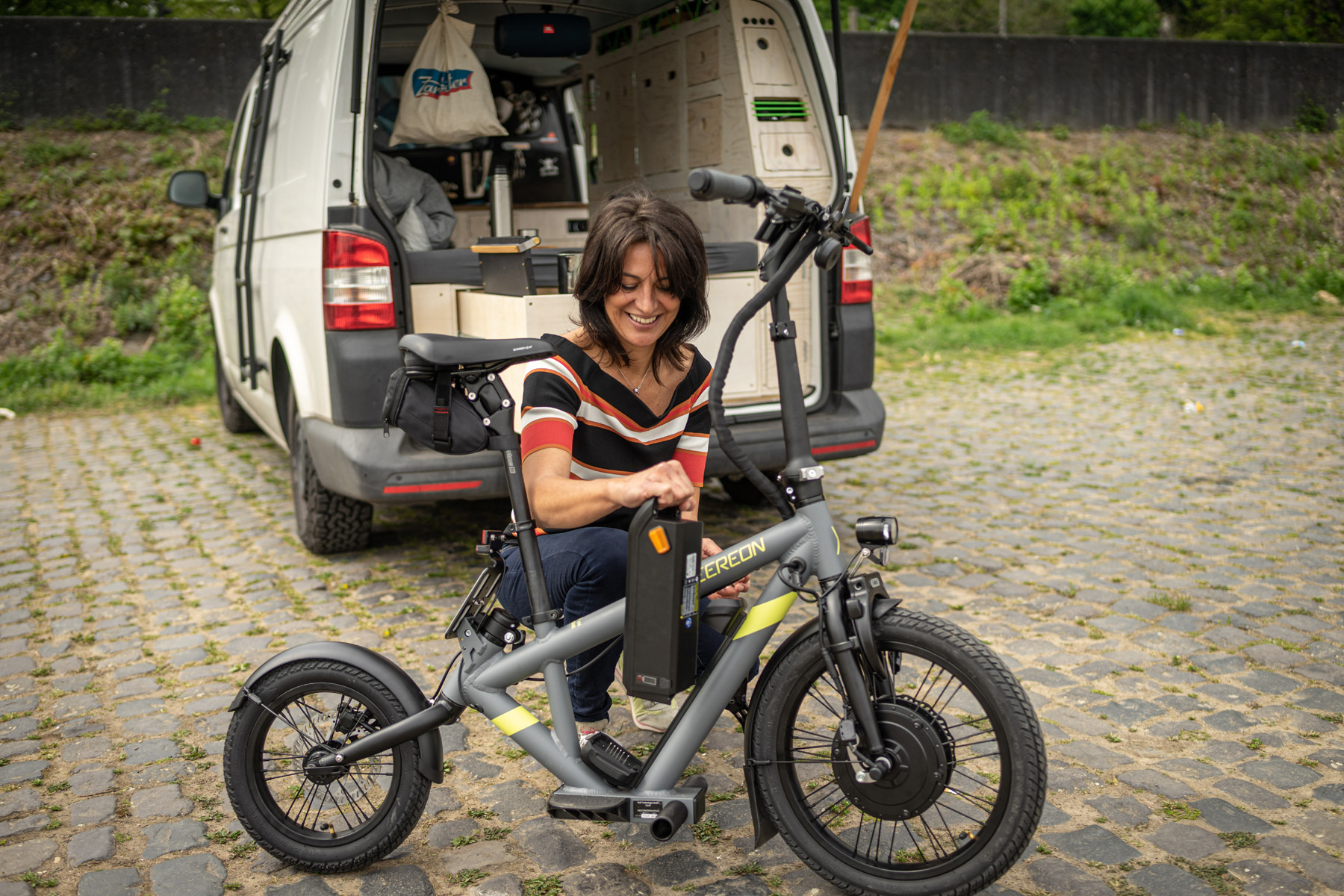

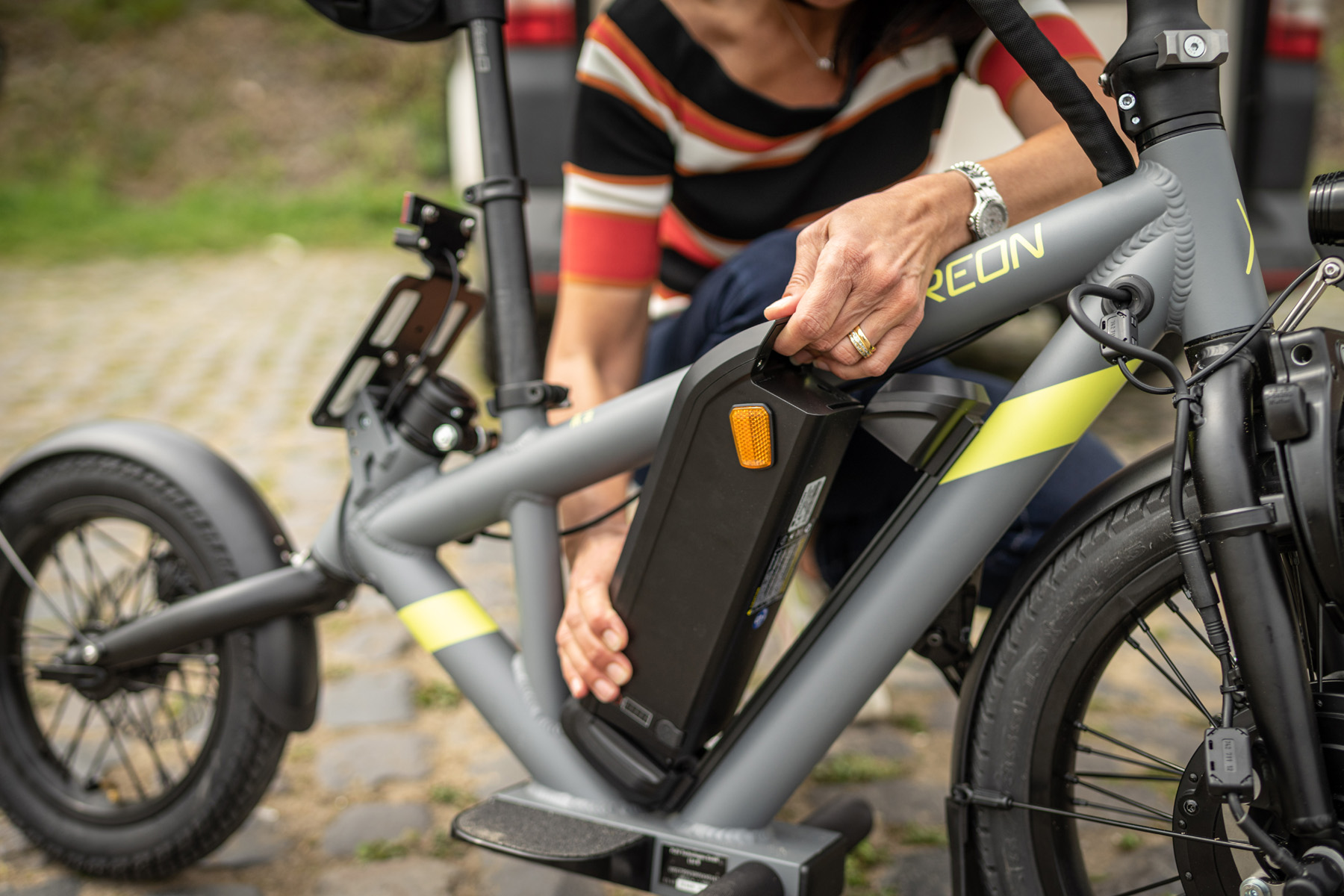

Battery removable: Yes - by key
Charging time: approx. 4 hours

Weight: approx. 22.0 kg
Permitted total weight: 150 kg
Tyre size: 18 inch front, 14 inch rear
Dimensions (ready to ride): approx. 134 x 62 x 104 - 114 cm

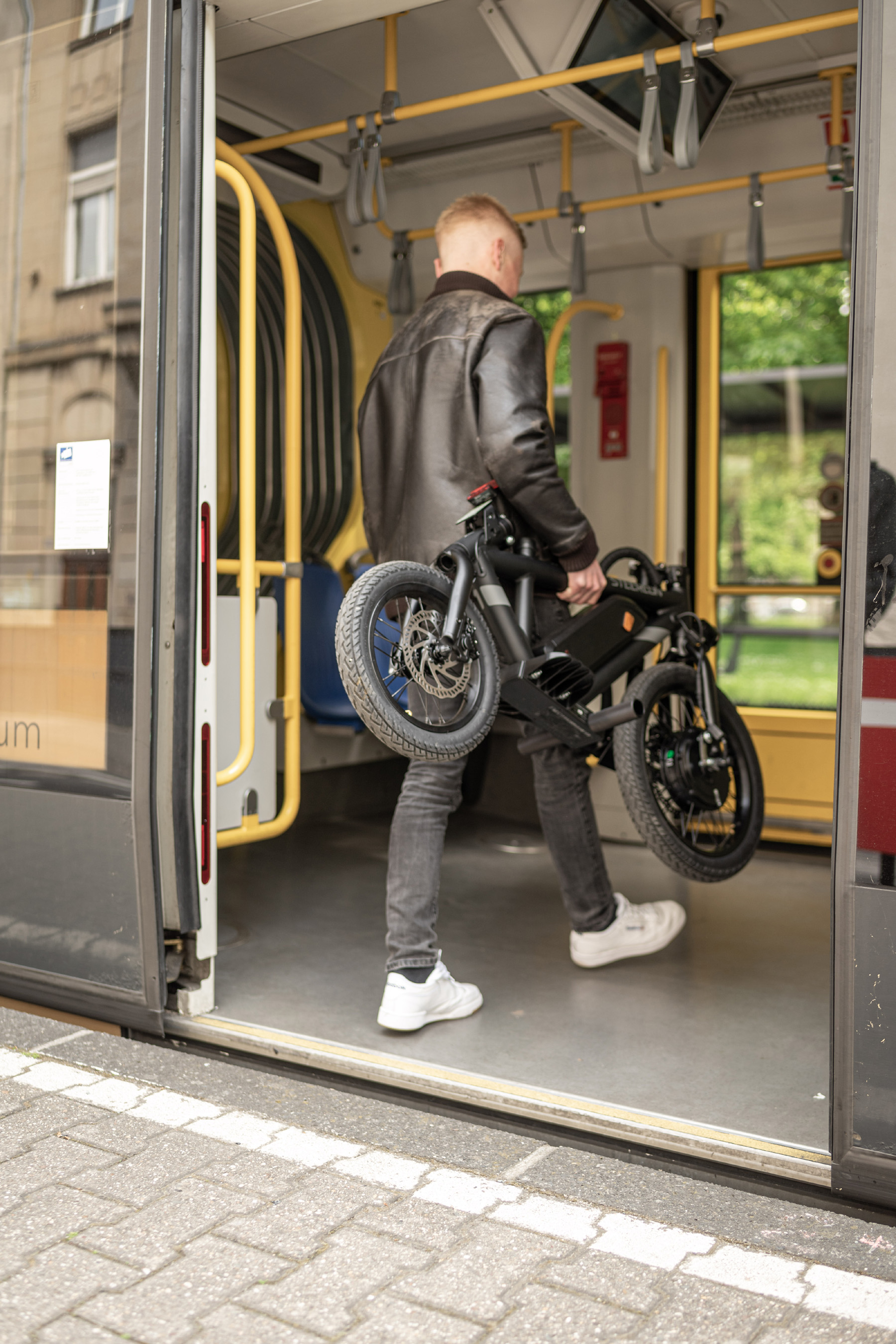

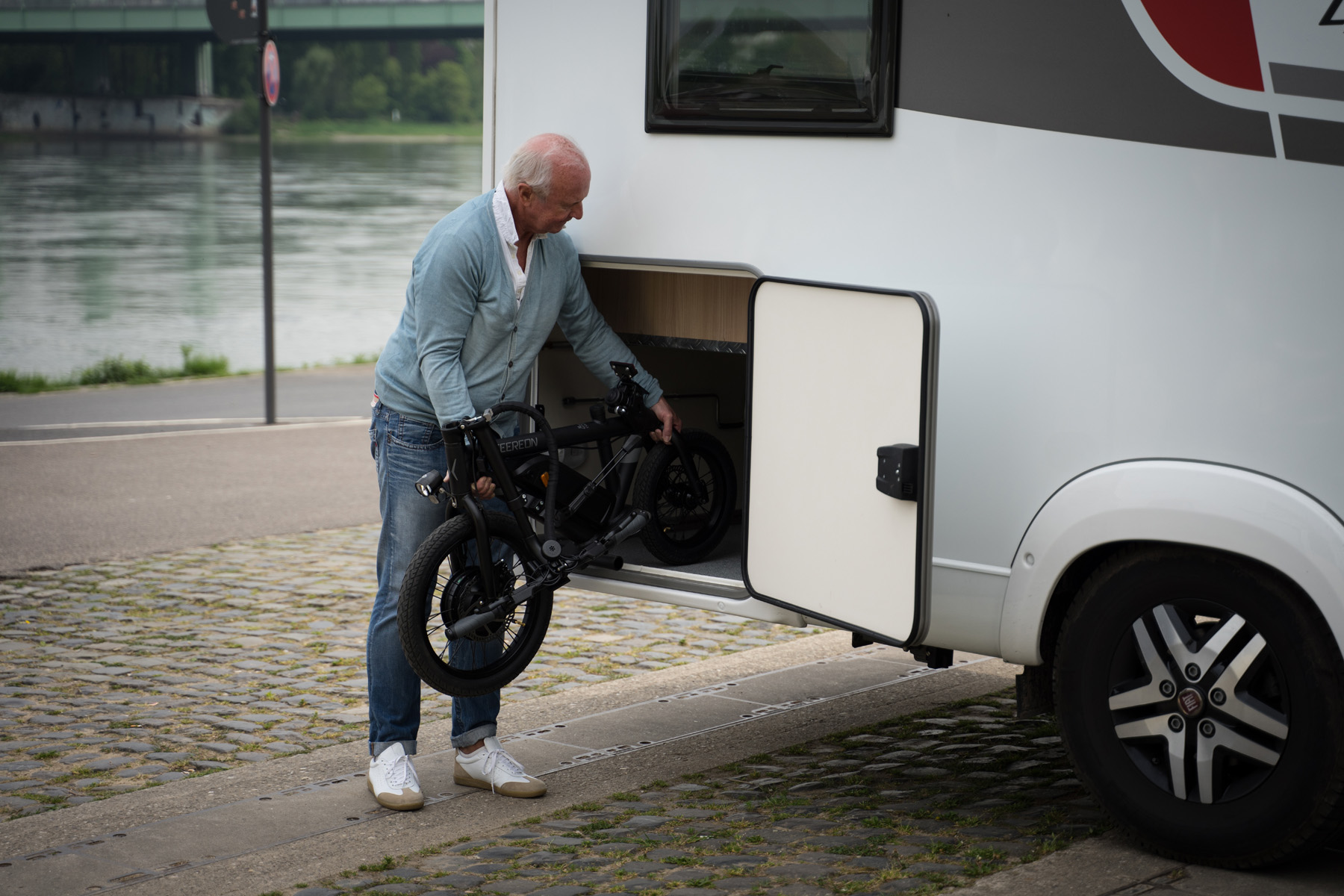

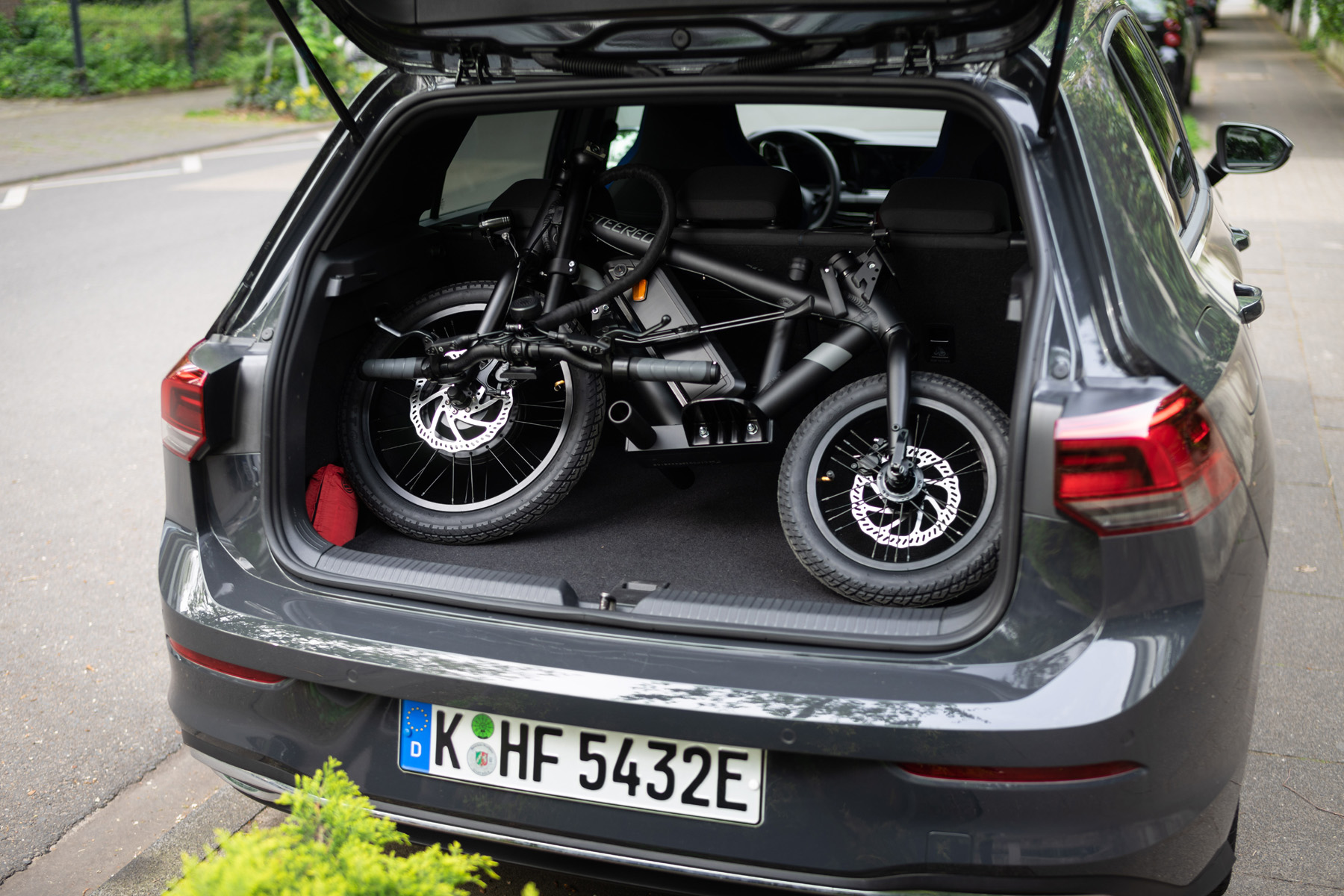

Dimensions (folded):
with folding function front + rear + rear wheel removed: approx. 99 x 34 x 67 cm
with folding function front + rear + rear wheel mounted: approx. 116 x 34 x 70 cm
with folding function front + rear wheel removed: approx. 116 x 34 x 64 cm

Suspension: Front & rear pneumatic tyres with puncture protection
Brakes: Hydraulic disc brakes front & rear

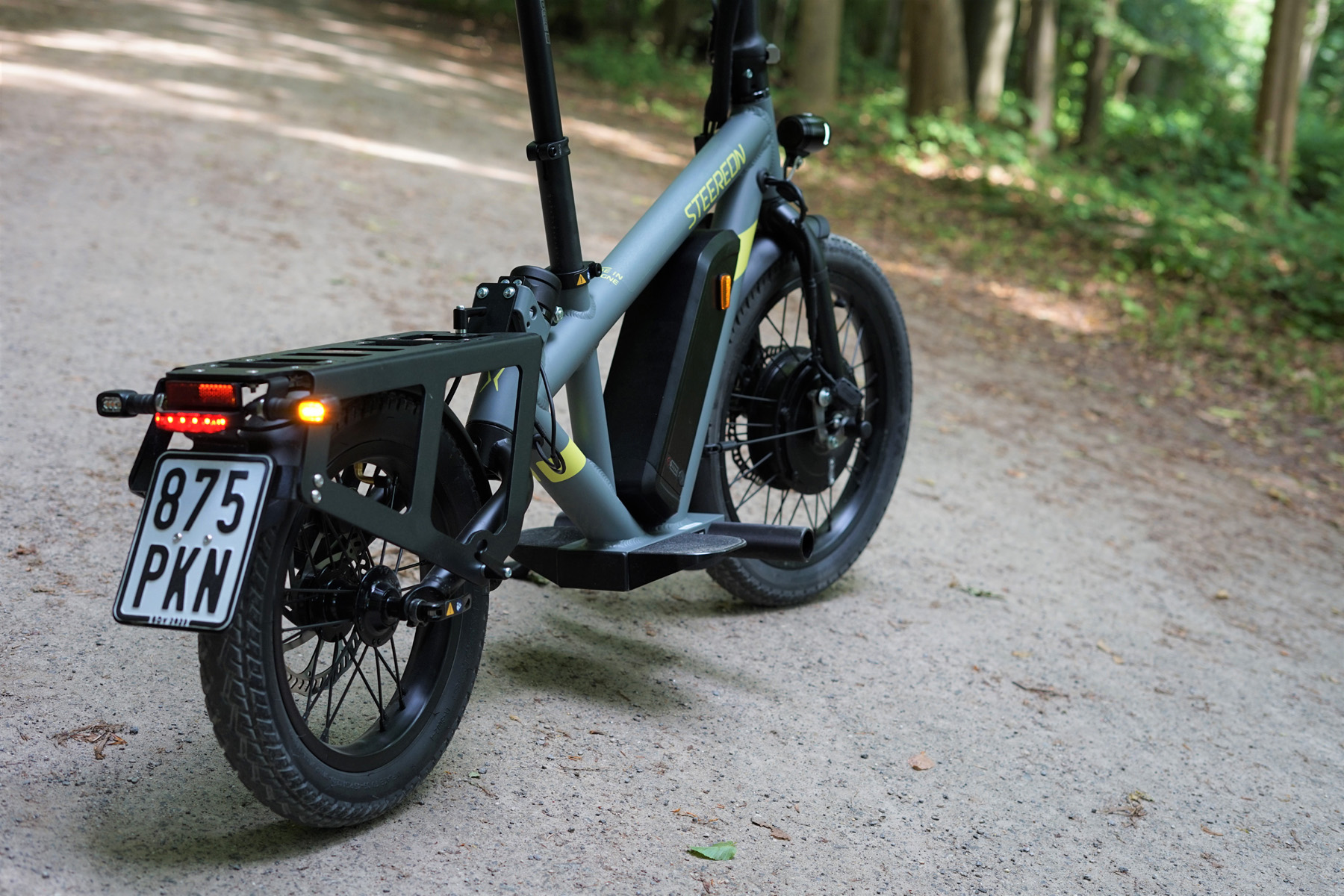

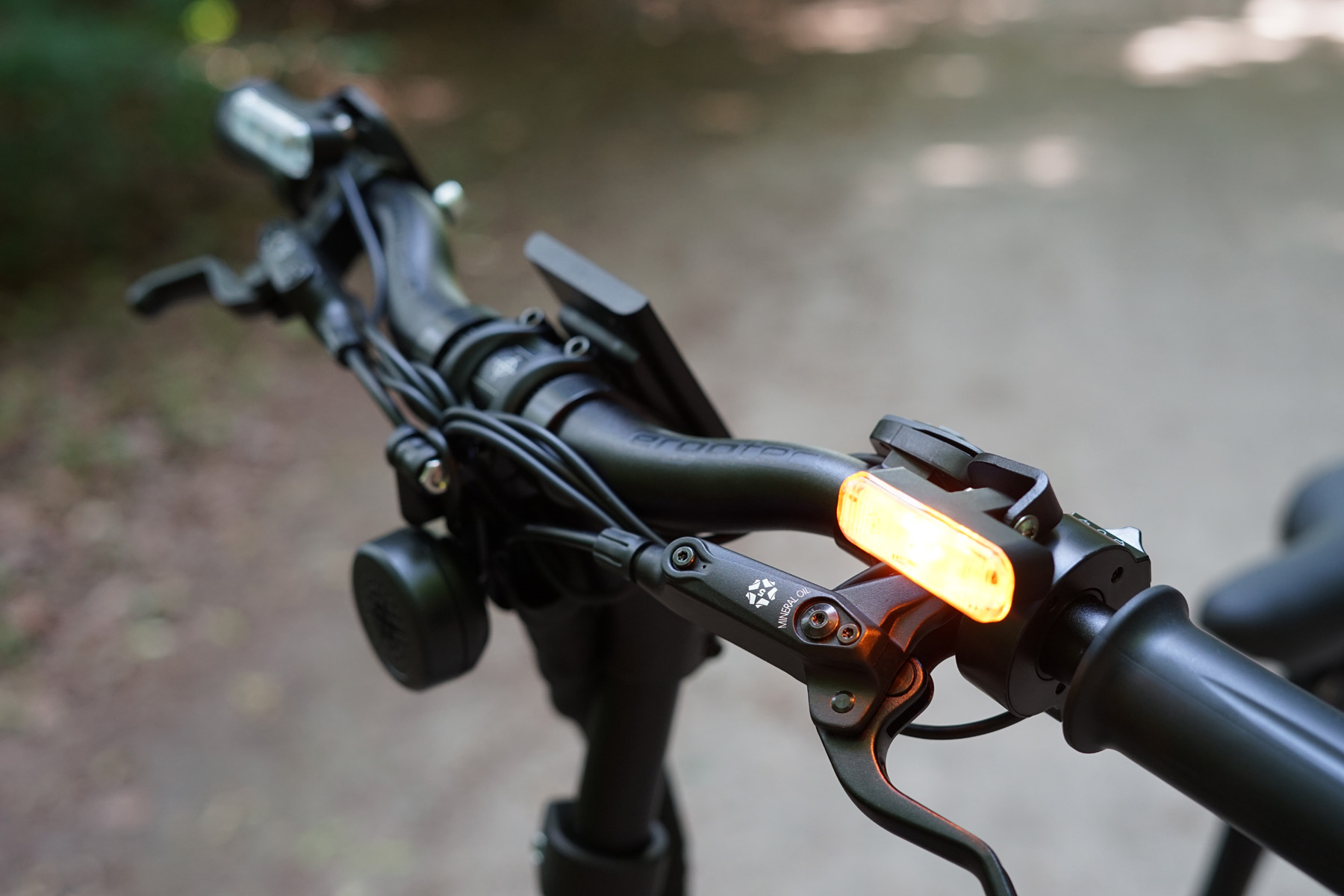

Light: LED headlights front and rear, with brake light function | optionally available with indicators

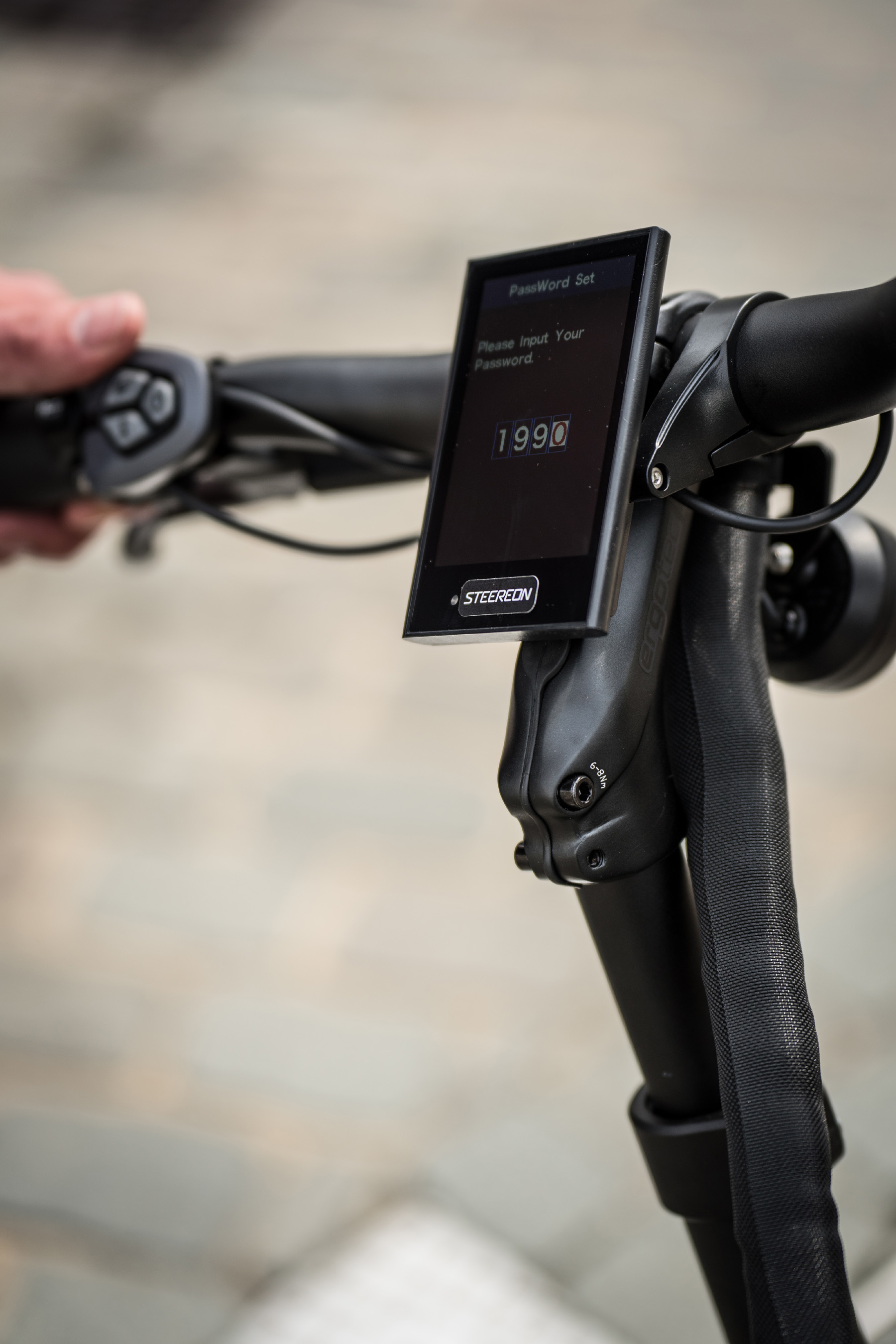

Control unit: LED display with USB port, code immobiliser and horn
with folding function front + rear wheel mounted: approx. 134 x 34 x 67 cm

The following is included in the scope of delivery:

STEEREON
rechargeable battery
mudguards
Vehicle documents
charger
Quick guide
Operating instructions
Key for the battery
Disc brake spacer
Other accessories ordered
Other equipment ordered

• Control:	Throttle & brake lever, Thumb throttle & brake lever
• Folding function:	Foldable frame, Folding handlebar, Handlebar height adjustable
• Gradabilidad (%):	Strong inclines (10-15%)
• Load (Kg) up to:	130
• Operating range:	48 - 54,6 Volt
• Quick changeable battery:	Additional battery possible, Quick change possible
• Range (km):	100
• Suitable for air travel:	no
• Suspension:	Via tyres
• Tire type:	Pneumatic tyres with tube (TT)
• Turn signals:	Optionally
• Wheel size:	14", 18"
••• SUB CATEGORIES •••:	E-SCOOTER

| Manufacturer 🏭 "STEEREON"

PLEV Technologies GmbH

Kalker Hauptstraße 275

51103 Köln
